Open Box Panasonic LUMIX BS1H Full-Frame Cinema Box Camera
- Product #:
- UIOPND1920
- Manufacturer #:
- DC-BS1H
- UPC:
- 885170387065
- 24.2MP full-frame sensor with Dual Native ISO
- Unlimited video recording on all settings
- 14+ stops of V-Log/V-Gamut, Anamorphic mode
- 12-bit RAW output over HDMI
- Remote control, 4K 60p streaming with PoE+
- Genlock, Timecode, HDMI, 3G-SDI, Wi-Fi
"IMAGES OF ITEM ARE FOR ILLUSTRATIVE PURPOSES ONLY"
- Condition:
- Open Box
- Video Resolution:
- H.265/H.265 Long GOP/MOV 4:2:2 10-Bit:
4096 x 2160p at 23.98/25/29.97 fps (100 to 400 Mb/s)
3840 x 2160p at 23.98/25/29.97 fps (100 to 400 Mb/s)
3328 x 2496p at 23.98/24/25/29.97 fps (150 to 400 Mb/s)
1920 x 1080p at 23.98/29.97/59.94 fps (100 to 200 Mb/s)
1920 x 1080i at 50/59.94 fps (50 to 100 MB/s)
H.265/H.265 Long GOP/MOV 4:2:0 10-Bit:
5952 x 3968p at 23.98/24/25 fps (200 Mb/s)
5376 x 3584p at 25/29.97 fps (200 Mb/s)
5888 x 3312p at 23.98/25/29.97 fps (200 Mb/s)
4096 x 2160p at 23.98/24/29.97/48/50/59.94 fps (200 Mb/s)
H.265/H.265 Long GOP/MOV 4:2:0 10-Bit:
1920 x 1080p at 100/119.88 fps (150 Mb/s)
1920 x 1080p at 47.95/48 fps (100 Mb/s)
- Video Resolution:
- The measurement in height x width of a captured video file. Common sizes are VGA, 720p, and 1080p.
- Image Sensor Size:
- 35mm full-frame (35.6mm x 23.8mm) CMOS sensor
- Image Sensor Size:
- Refers to the actual physical size of the imaging sensor in the camera. A sensor that has the same dimensions as a 35mm frame of film is considered to be "full" frame. Other smaller sensor sizes are described in terms relative to a "full" sized sensor. (e.g. an APS-C 1.5x crop sensor)

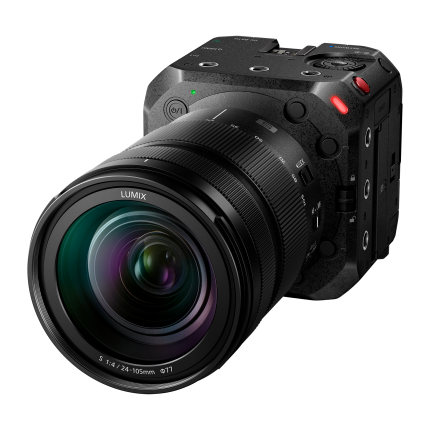

- Lens Mount:
- L-mount
- Lens Mount:
- The type of lens mount.
- Wi-Fi:
- 2.4 GHz Wi-Fi 4 (802.11n), Wi-Fi (802.11b/g), Bluetooth Video Output, Control

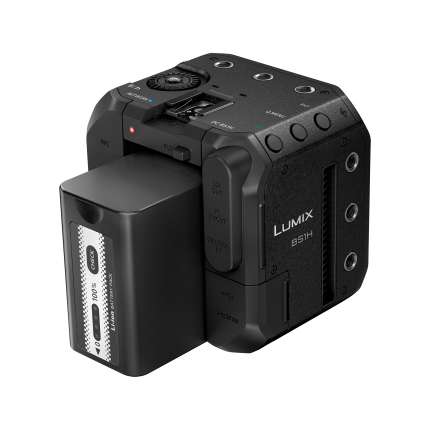

- Battery:
- Panasonic AG-VBR Series
- Mount Type:
- L-Mount
- Mount Type:
- This is the mount type for the lens to attach to the camera body.
OVERVIEW
Box-Style Live & Cinema Full-frame Camera
A large format sensor and 6K 24p video recording performance in a compact box-style camera body for everything from live streaming to multi-camera control and shooting using a gimbal or drone. A lightweight device that will innovate the video production workflow.

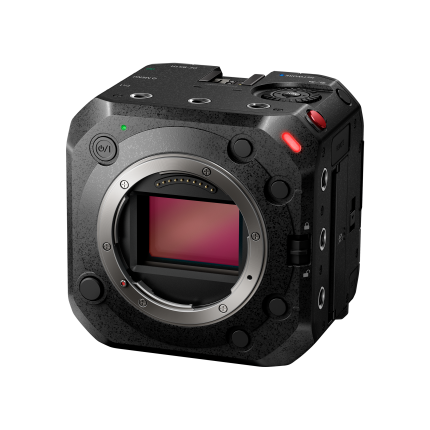

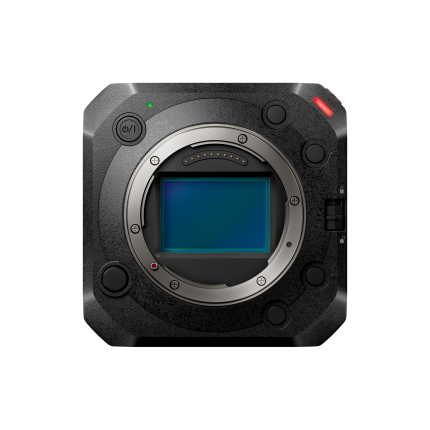

24.2MP full-frame sensor with Dual Native ISO technology
The 24.2-megapixel full-frame CMOS sensor delivers high sensitivity and top image quality in both still photos and videos. Dual Native ISO technology further enhances video performance.
6K video recording performance and multiple recording modes
Equipped with 6K 24p 4:2:0 10-bit (3:2) and 5.9K 30p/25p/24p 4:2:0 10-bit in addition to C4K/4K 60p/50p 4:2:0 10-bit, C4K/4K 30p/25p/24p 4:2:2 10-bit and anamorphic 4K recording. Meets the diverse video production needs of professionals with a wide array of recording modes.
Heat management = unlimited recording
The LUMIX BS1H realizes unlimited video recording in all modes, with a cooling fan to mitigate the rise in the camera’s temperature and keep it working optimally in the guaranteed operating temperature range.
HDMI live output for professional film creation
The LUMIX BS1H enables the output of maximum 29.97p 5.9K (5888x3312, 16:9) / 59.94p 4K (4128x2176, 17:9) and Anamorphic 3.5K (3536x2656, 4:3) 12-bit RAW video data over HDMI to save it as Apple ProRes RAW on the Atomos Ninja V 4K HDR monitor-recorder. The Blackmagic RAW can also be recorded on Video Assist 12G HDR.
HDMI live output for professional film creation
Simultaneous 6K 24p 4:2:0 10-bit (3:2) / 5.9K 30p/25p/24p 4:2:0 10-bit (16:9) internal recording and 4K 4:2:2 10-bit HDMI Live Output external recording are supported.
14+ stops of V-Log and V-Gamut "VariCam Look"
V-Log and V-Gamut come preinstalled. With 14+ stops of dynamic range and a wide color spectrum, BS1H offers performance that rivals that of a VariCam professional cinema camera.
Flexible expandability with wired LAN connection
Multiple camera recording is enabled by Ethernet cable connection on LUMIX Tether for Multicam version 1.1 or higher for more efficient video production.
Flexible expandability with wired LAN connection
BS1H is equipped with a LAN terminal, and by connecting it with a PC using an ethernet cable, it will expand your shooting options remote control of up to 12 units using LUMIX Tether for Multicam version 1.1 or higher and IP streaming (RTP/RTSP protocol). It is also possible to supply power from devices that support PoE+ (IEEE802.3at compliant).
Flexible expandability with wired LAN connection
Supports the IP streaming function via PC with a wired LAN connection. Conduct high quality live streaming with up to 4K 60p/50p (H.265 codec) using social media platforms.

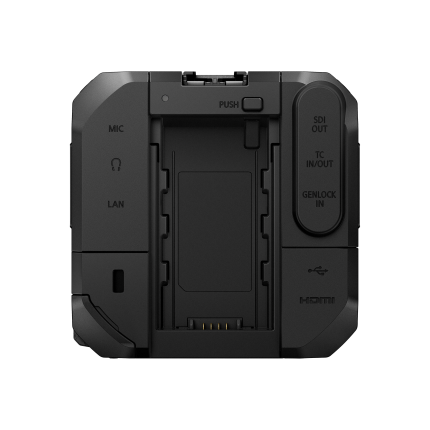

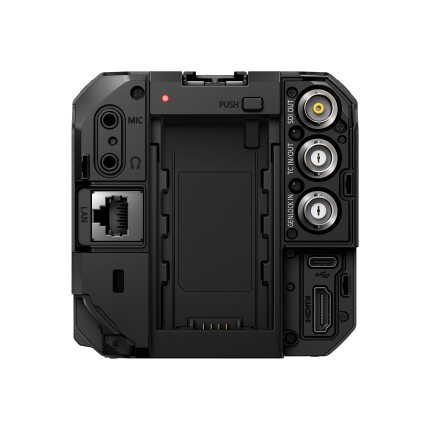

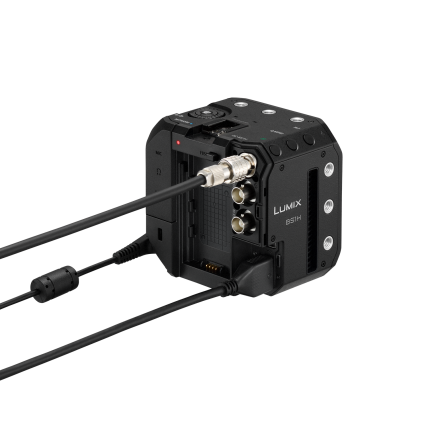

Simultaneous SDI/HDMI output
You can simultaneously monitor SDI output, record HDMI output externally, and control the camera remotely via USB or LAN tethering.
Genlock IN and Timecode IN/OUT
Supporting Genlock IN enables multiple-camera control and streaming. Used in combination with the timecode feature, it delivers high-precision live video production.
Product Reviews
There are no reviews for this product.
Specifications
| Brand | |
|---|---|
| Panasonic - panasonic |
|
| Detailed Specifications | |
|---|---|
| Camera Mount: | L-Mount |
|
|
| A/V Mode | |
|---|---|
| Video Resolution: |
H.265/H.265 Long GOP/MOV 4:2:2 10-Bit: 4096 x 2160p at 23.98/25/29.97 fps (100 to 400 Mb/s) 3840 x 2160p at 23.98/25/29.97 fps (100 to 400 Mb/s) 3328 x 2496p at 23.98/24/25/29.97 fps (150 to 400 Mb/s) 1920 x 1080p at 23.98/29.97/59.94 fps (100 to 200 Mb/s) 1920 x 1080i at 50/59.94 fps (50 to 100 MB/s) H.265/H.265 Long GOP/MOV 4:2:0 10-Bit: 5952 x 3968p at 23.98/24/25 fps (200 Mb/s) 5376 x 3584p at 25/29.97 fps (200 Mb/s) 5888 x 3312p at 23.98/25/29.97 fps (200 Mb/s) 4096 x 2160p at 23.98/24/29.97/48/50/59.94 fps (200 Mb/s) H.265/H.265 Long GOP/MOV 4:2:0 10-Bit: 1920 x 1080p at 100/119.88 fps (150 Mb/s) 1920 x 1080p at 47.95/48 fps (100 Mb/s) |
|
|
| Physical Specifications | |
|---|---|
| Dimensions: | Approx. 93.0 x 93.0 x 78.8 mm / 3.66 x 3.66 x 3.1 inch |
|
|
| Weight: | Approx. 585g / 1.29 lb (Body only) |
|
|
| Brand | |
|---|---|
| Brand: | Panasonic |
| Memory Card Specs | |
|---|---|

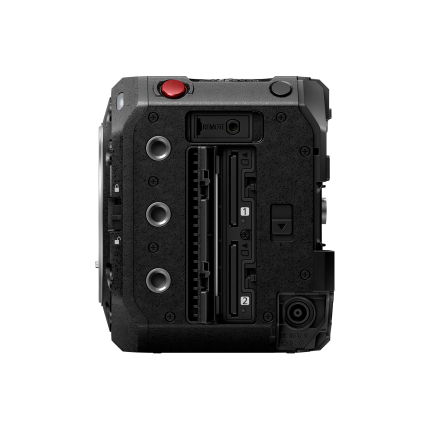

| Memory Card Type: | Dual Slot: SD/SDHC/SDXC (UHS-II) [V90 or Faster Recommended] |
|
|
| Camera Attributes | |
|---|---|
| Image Sensor Size: | 35mm full-frame (35.6mm x 23.8mm) CMOS sensor |
|
|
| ISO Sensitivity: |
100 to 51,200 (Native) 80 to 204,800 (Expanded) |
| Lens Mount: | L-mount |
|
|
| A/V Details | |
|---|---|
| Wi-Fi: | 2.4 GHz Wi-Fi 4 (802.11n), Wi-Fi (802.11b/g), Bluetooth Video Output, Control |
| Video Connectors: |
1 x BNC (3G-SDI) Output 1 x HDMI (HDMI 2.0) Output |
| White Balance Modes: | 2500 to 10,000K |
| Battery: | Panasonic AG-VBR Series |
| Camcorder Type: | Cinema Camera |
|
|
| Audio Format: |
MOV: 24-Bit 48 kHz LPCM Audio MOV: 24-Bit 96 kHz LPCM Audio MP4: 24-Bit 48 kHz LPCM Audio MP4: 24-Bit 96 kHz LPCM Audio |
| Audio Connectors: |
1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input on Camera Body 1 x 1/8" / 3.5 mm Stereo Headphone Output on Camera Body |
| Still Image Resolution: |
Full-Frame lenses:- 6000x4000(L) / 4272x2848(M) / 3024x2016(S) APS-C/Super 35mm lenses:- 3888x2592(L) / 2784x1856(M) / 1968x1312(S) |
| USB: | USB Type-C Camera Interface, USB 3.1 Gen 1 Data, Control, Video Input |
| Built-In Microphone: | Stereo |
| Focusing System: | Autofocus / Manual focus |
|
|
| Power Connectors: | Weipu SF610/S2 (12 VDC) Input |
| Lens Specification | |
|---|---|
| Mount Type: | L-Mount |
|
|
In The Box
- Panasonic Lumix BS1H Full-Frame Box-Style Live & Cinema Camera
- AC Power Adapter
- AC Cable
- Cable Lock Band
- Body Cap
- Hot Shoe Cover
- Audio Terminal Cover
- DC In Terminal Cover
- BNC Terminal Cover
- HDMI Terminal Cover
- Remote Terminal Cover
- Limited 1-Year Warranty
- Limited 3-Year Warranty with Product Registration
