OVERVIEW

The OSDK expansion module can attach a Manifold 2 onto the Matrice 300 RTK platform, and offers standard adapter interfaces to allow connection with various onboard computing platforms.

• Compatible with the M300 RTK and Manifold 2.
• Converts interfaces on the M300 RTK OSDK to standard interfaces such as USB Type-A, UART serial port and XT30 power output, to allow for connection with onboard computing platforms.
• Can be used with the single upward gimbal to meet the needs of more scenarios.
• When mounted onto the M300 RTK, the module can be put into the safety transport case while attached to the drone, ensuring easier storage.

Product Reviews

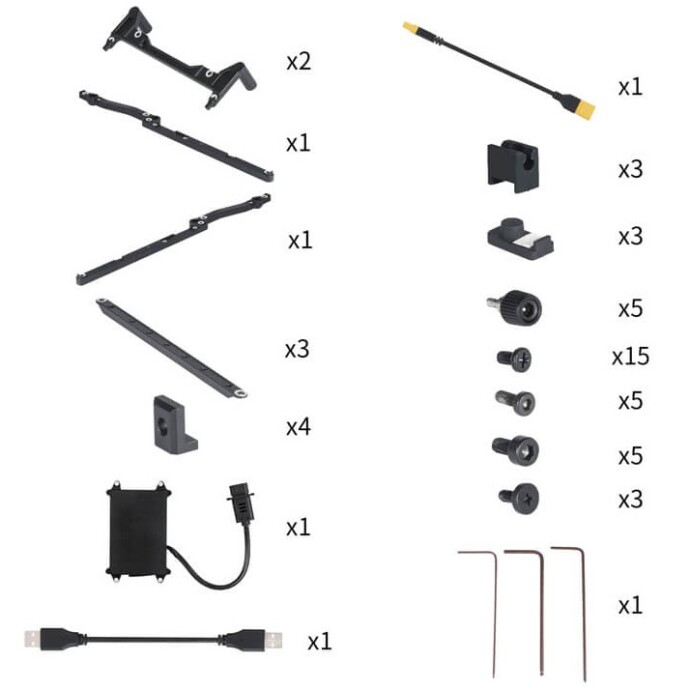

In The Box

• Bracket A (upper) x 2
• Bracket B (left) x 1
• Bracket C (right) x 1
• Bracket D (reinforcing rib) x 3
• Bracket connection block x 4
• OSDK adapter plate module x 1
• USB cable (with two type-A ports) x 1
• XT30 power cable x 1
• Wire clip x 3
• Foot pad x 3
• Hand screw x 5
• Screw A (M1.6) x 15
• Screw B (M2.0) x 5
• Screw C (M3.0) x 5
• Screw D (M1.6 step) x 3
• Screwdriver kit x 1
