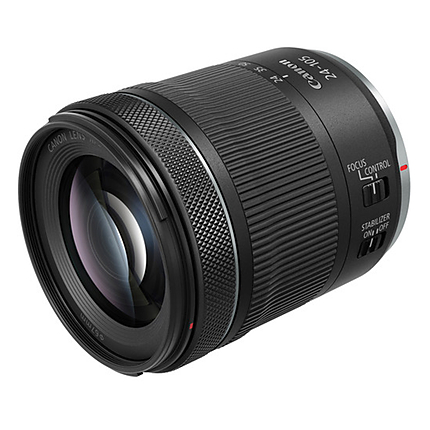

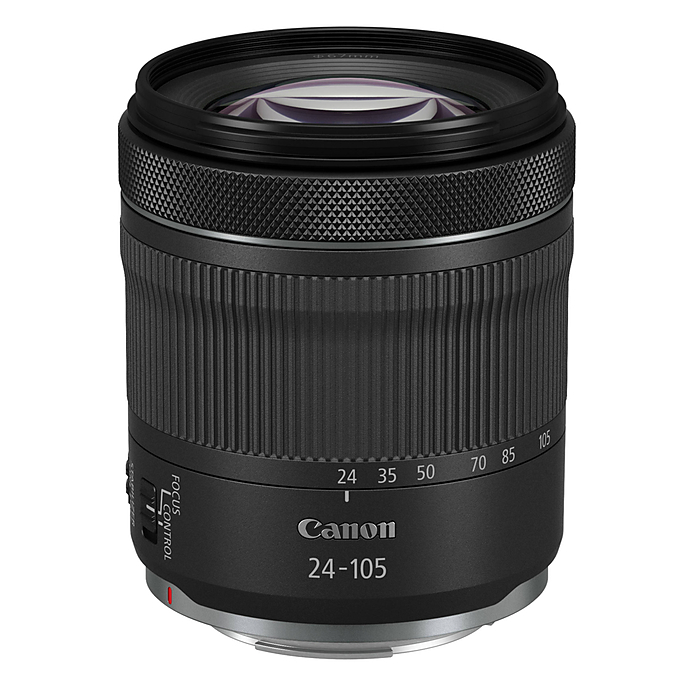

Canon RF24-105mm f/4-7.1 IS STM Lens

Be the first to write a review

Canon RF 24-105mm f/4-7.1 IS STM Lens
Lens Type: Standard Zoom
Focal Length: 24-105mm
Covers Wide-Angle To Short-Telephoto Lengths
Center Macro Focus / 1:2 Max. Magnification
Min. Focusing Distance: 5.2"
Features STM Stepping AF Motor
Optical Image Stabilizer (Up To 5-Stops)
Suitable For Low-Light / Slower Shutter-Speeds
Features Configurable Control-Ring
Easy-Access To Aperture, ISO, Exposure Comp.
Rounded, 7-Blade Diaphragm
Enables "Bokeh" via Selective Focusing
Color: Black

Lens Filter Size:: Ø67mm

Lens Filter Size:: The size of the filter that fits the lens.

View All Attribute Definitions

Focal Length:: 24-105mm

Focal Length:: Focal Length

View All Attribute Definitions

Maximum Aperture:: f/4-7.1

Maximum Aperture:: How wide a lens can be opened.

View All Attribute Definitions

Mount Type:: Canon RF

Mount Type:: This is the mount type for the lens to attach to the camera body.

View All Attribute Definitions

OVERVIEW

Perfect for landscapes, portraits, travel and more, the RF24-105mm F4-7.1 IS STM is a compact, lightweight lens for EOS R Series cameras, offering a versatile zoom range* that captures different subjects with ease. For macro enthusiasts, the RF24-105mm F4-7.1 IS STM is particularly advantageous, featuring an impressive maximum magnification of 0.5x using Center Macro Focus – helping you snap photos from as close as one inch away. Your images and videos will remain clear and steady, too, thanks to a leadscrew-type STM motor that enables smooth autofocusing, and optical image stabilization with up to 5 stops** of shake correction. And, with a control ring that allows for quick setting changes***, including shutter speed and aperture, the RF24-105mm F4-7.1 IS STM lens puts quality, convenience and control in your hands.

Promotional Video:

Compact and Lightweight

A dramatically compact lens, the RF24-105mm F4-7.1 IS STM packs a broad zoom range and a bright maximum aperture into a well-balanced, refined design that balances comfortably on EOS R series cameras. The RF24-105mm F4-7.1 IS STM lens makes for a lightweight and comfortable, all-day lens.

Ideal Zoom Range for All-day Photography

With a zoom range covering macro-like, wide angle, normal and telephoto, the RF24-105mm F4-7.1 IS STM excels in a variety of shooting situations, offering amazing versatility with the turn of a zoom ring. For example, with the RF24-105mm F4-7.1 IS STM, the EOS R series cameras can go from shooting landscapes to portraits without a single lens change.

Maximum Magnification of 0.4x and Minimum Focusing Distance of 0.66 ft. in Auto Focus

With a minimum focusing distance of 0.66 ft./0.20m and a maximum magnification of approx. 0.4x, the RF24-105mm F4-7.1 IS STM lens is capable of capturing detailed images from various distances. Whether you're shooting portraits or still-life, the RF24-105mm F4-7.1 IS STM lens can easily provide sharp images with minimal distortion.

Maximum Magnification of 0.5x and Minimum Focusing Distance of 0.43 ft. when using Center Focus Macro

The RF24-105mm F4-7.1 IS STM lens is ideal for capturing a variety of subjects at a close ratio. With its maximum magnification ratio of 0.5x - using Center Macro Focus. Simply switch the focus mode to "MF" (Manual Focus) on any EOS R series camera, set the focus/control ring switch to "FOCUS" and enjoy snapping shots from as close as one inch away.

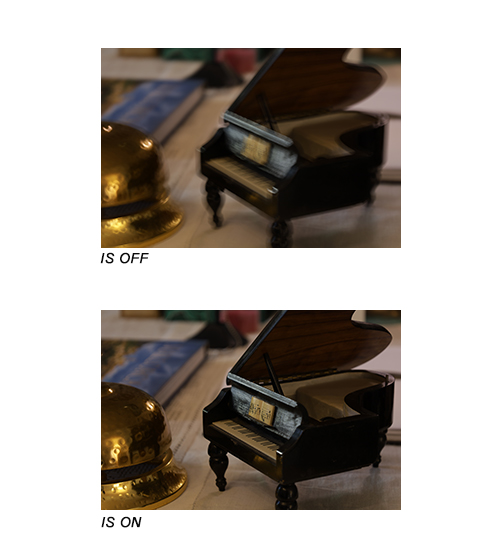

Optical Image Stabilization at up to 5 Stops** of Shake Correction

The RF24-105mm F4-7.1 IS STM lens is designed to work in conjunction with EOS R series cameras, with both the camera and the lens sharing data to dramatically reduce camera-shake blur, regardless of the situation, whether shooting video or stills. With up to 5 stops** of stabilization, it delivers impressively clear results.

Leadscrew-type STM enables Smooth Autofocusing for Still-image and Video Shooting

Capture fast-moving subjects without missing a moment by combining the leadscrew-type STM with the EOS R series' Dual Pixel autofocus system to achieve high-speed, high-precision focus.

Control Ring for Direct Setting Changes***

The RF24-105mm F4-7.1 IS STM lens incorporates a control ring on the lens barrel that can directly adjust numerous settings including shutter speed, aperture, exposure compensation and more. Located towards the front of the lens, the control ring has a tactile, easily distinguished surface that provides tangible feedback for confident use while looking through the viewfinder.

High-speed Communication with an EOS R Series Camera

Designed to quickly process data, the RF24-105mm F4-7.1 IS STM features a 12 pin communication system that is the fastest yet for a Canon lens/camera combination. This accelerates AF, Image Stabilization, the Digital Lens Optimizer and more, helping to simplify complex operations and provide a quick and reliable user experience.

Lens Information Display

Another helpful feature, the EOS R series cameras can display lens information right in the viewfinder, making it easy to confirm the lens's focal length without looking away from the subject at hand.

In-camera Digital Lens Optimizer

The EOS R system's 12 pin communication system enables the Digital Lens Optimizer, which works in-camera to combat aberrations and image deterioration, especially in the edges of the image frame when shooting at a large aperture. Data from the RF24-105mm F4-7.1 IS STM lens is transferred automatically to the camera body, facilitating near immediate correction for clear, detailed images.

DISCLAIMERS

* In order to use this lens with the EOS R or EOS RP, you must download and install the latest camera firmware from the Canon website.

** Based on CIPA (Camera & Imaging Products Association) standards. Testing performed at a focal length of 105mm using the EOS R camera.

*** The Control ring is the same as the Focusing ring.

Product Reviews

There are no reviews for this product.

Write a review

Specifications

Brand
Canon

Brand
Brand:
Brand:	Canon

Lens Specification
Lens Min. Focus Distance:	During AF: 0.7 - 1.12 ft./ 0.2 - 0.34m During MF: 0.43 - 1.12 ft./ 0.13 - 0.34m
Lens Min. Focus Distance: The shortest distance that a lens can focus. View All Attribute Definitions
Lens Filter Size:	Ø67mm
Lens Filter Size: The size of the filter that fits the lens. View All Attribute Definitions
Lens Magnification Factor:	During AF: 0.4x (105mm) During MF: 0.5x (24mm)
Lens Magnification Factor: This is the magnifying factor of a lens. Macro lenses will often be described by their “magnification factor”. A lens with a 1:1 magnification factor produces a projected image on the sensor which is the same as the subject. View All Attribute Definitions
Minimum Overall Length:	Approx. 3.50 in. / 88.8mm
Lens Construction:	13 elements in 11 groups
Maximum Diameter:	Approx. Ø3.02 in. / Ø76.6mm
Image Stabilization:	5 stops (When using the EOS R with a 105mm focal length.)
Weight:	Approx. 0.87 lbs. / 395g
Weight: Weight View All Attribute Definitions
Aperture Blades:	7 (circular)
Focal Length:	24-105mm
Focal Length: Focal Length View All Attribute Definitions
Special Lenses:	One aspherical lens
Focus Drive:	STM + lead screw
Focus Drive: The internal autofocus drive of a lens. View All Attribute Definitions
Maximum Aperture:	f/4-7.1
Maximum Aperture: How wide a lens can be opened. View All Attribute Definitions
Mount Type:	Canon RF
Mount Type: This is the mount type for the lens to attach to the camera body. View All Attribute Definitions
