Canon REALiS WUX7000Z RS-SL01ST Standard Lens Kit

Be the first to write a review

Canon REALiS WUX7000Z RS-SL01ST Standard Lens Kit
With remote control
Maximum illumination of 7000 lumens
Dynamic contrast ratio of 4000:1
LCOS technology with AISYS enhancement
DICOM simulation mode
Motion blur reduction
Built-in real-time clock
HDBaseT connectivity
Network Multi Projection
Power management settings
120 to 240 VAC power supply

Color:: White

Color:: The color of the item.

View All Attribute Definitions

Projector Display System:: 3-Chip 0.71" LCoS

Projector Display System:: This is the type of projection used by a projector. Common projection types are LCD, DLP, and CRT.

View All Attribute Definitions

Overview

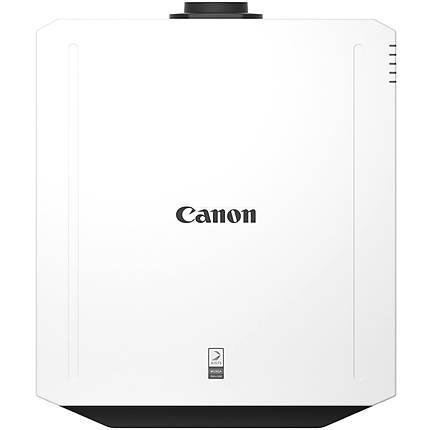

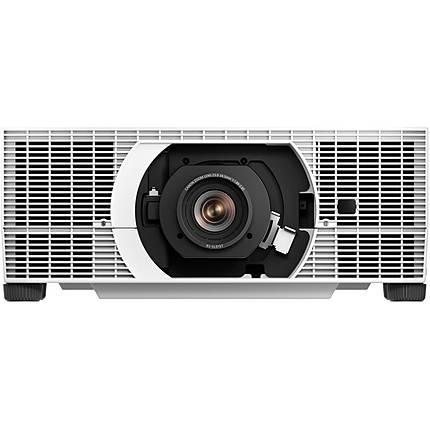

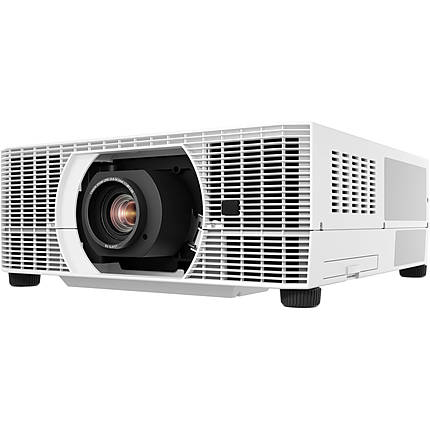

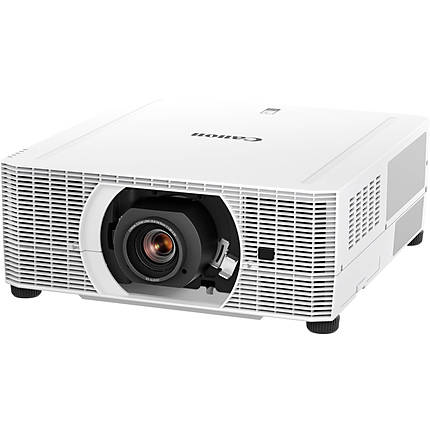

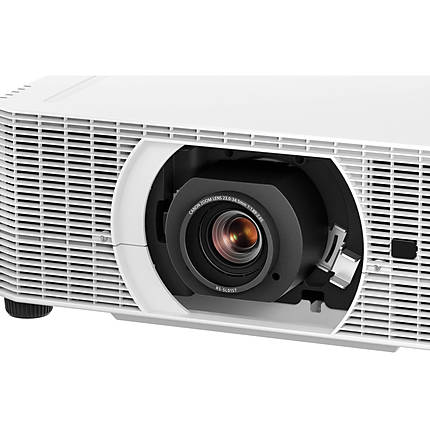

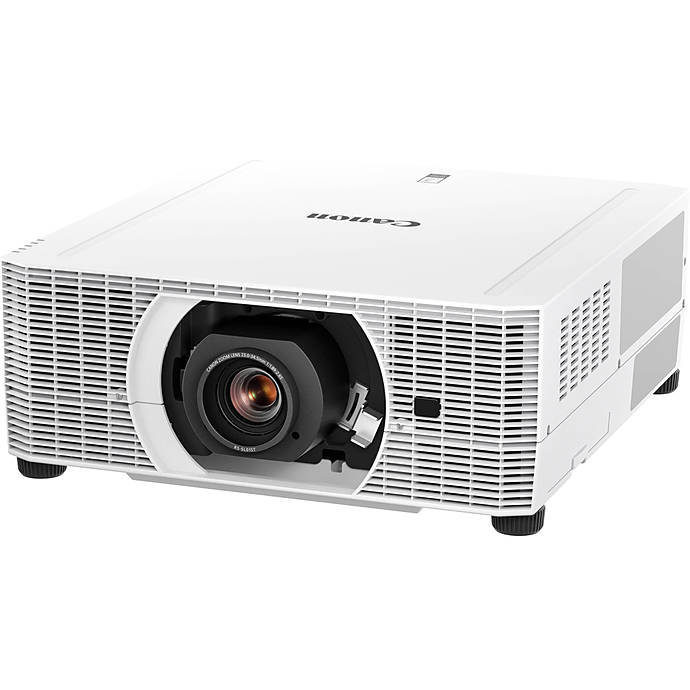

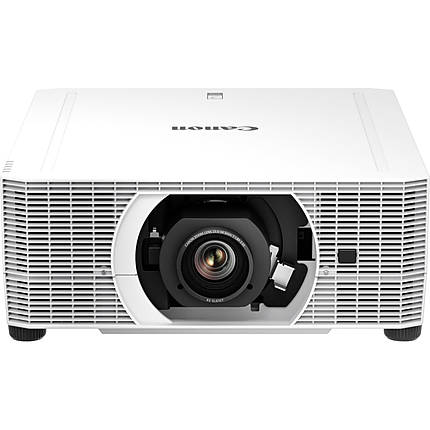

The Canon REALiS WUX7000Z RS-SL01ST Standard Lens Kit is ideal for medical practitioners and business persons for accurate fact-based representation. A standard 1.5× zoom lens is provided with the REALiS WUX7000Z projector. It casts images with a brightness up to 7000 lumens and a dynamic contrast ratio of up to 4000:1. You get a native WUXGA resolution of 1920×1200 with this Canon projector. The AISYS optical engine enhances the contrast and brightness, while the LCOS technology provides a film-like look to the projected content. Use the DICOM simulation mode to show the output of Digital Imaging and Communications equipment such as X-ray and CAT scan to medical students. The keystone correction lets you adjust the vertical and horizontal position of the image. The HDBaseT input allows you to take advantage of the Network Multi Projection to synchronize multiple projectors within the network. There are various power management settings to control the energy consumption rate of the projector. The provided RS-SL01ST standard zoom lens has a 1.5× magnification and throw distance of 10.5 to 15.7 feet. You can easily install the lens with its one-touch spigot type design.

Product Reviews

There are no reviews for this product.

Write a review

Specifications

Brand
Canon

Detailed Specifications
Type of Outputs:	1 x 1/8" (3.5 mm) Mini Audio (Output)
Type of Outputs: The available outputs for video and audio on a camera. View All Attribute Definitions
Max. Power Consumption:	Full Brightness: 540 W; Standby Mode (Lamp Off): 1.6 W
Max. Power Consumption: Maximum power consumption that a scanner uses. View All Attribute Definitions
Type of Input Connector:	1 x DVI-I Video (Input); 1 x HDMI Audio/Video (Input); 1 x DisplayPort Audio/Video (Input); 1 x 1/8" (3.5 mm) Mini Audio (Input); 1 x USB Control (Input); 1 x HDBaseT (RJ45) LAN (Input); 1 x RS-232C (DE-9) Control (Input); 1 x 1/8" (3.5 mm) Mini Control/Service (Input); 1 x Component (DE-15) Video Input
Type of Input Connector: This is the type of input connector. View All Attribute Definitions

Physical Specifications
Dimensions:	19.0 x 7.7 x 21.4" (48.3 x 19.6 x 54.4cm)
Dimensions: The measurements of an object. View All Attribute Definitions
Weight:	37.4 lb (16.96kg)
Weight: The physical weight of the item without packaging. View All Attribute Definitions
Color:	White
Color: The color of the item. View All Attribute Definitions

Power System
Power Input:	100 to 240 VAC, 50 / 60 Hz

Brand
Brand:	Canon

Detailed Specs
Other Resolutions:	WUXGA; UXGA; WSXGA+; SXGA+; WXGA+; FWXGA; WXGA; SXGA; XGA; SVGA; VGA

Lens
Focal Length:	23.0 to 34.5mm
Focal Length: The distance between the film and the optical center of the lens when the lens is focused on infinity. View All Attribute Definitions

Scanner Data
Scan Size:	Horizontal: 15.625 - 75 kHz; Vertical: 24 - 60 Hz
Scan Size: The size an image is scanned. View All Attribute Definitions

Image Display
Projector Light Source:	Laser Phosphor
Projector Light Source: This is the type of light source used in projecting an image. View All Attribute Definitions
Projector Display System:	3-Chip 0.71" LCoS
Projector Display System: This is the type of projection used by a projector. Common projection types are LCD, DLP, and CRT. View All Attribute Definitions
Contrast Ratio:	4000:1
Contrast Ratio: Measure of a display system. View All Attribute Definitions
Projector Throw Distance:	10.5 to 15.7' (3.2 to 4.8m)
Projector Throw Distance: Throw is the distance of a movie projector from the screen. It is the distance the image is thrown onto the screen, and it has a large effect on screen size. Often in home theatre individuals lack the correct throw distance in the room but can buy a short throw lens. There are also "long throw" lenses available. View All Attribute Definitions
Projector Image Size:	40 to 600" (1.0 to 15.2m)
Projector Image Size: This is the maximum size a projector is recommended to display. View All Attribute Definitions
Projector Brightness:	7000 Lumens
Projector Brightness: This is the maximum brightness for a projector usually measured in Lumens. 2000 Lumens is considered good for small and portable projectors while 4500 Lumens is considered super bright and practical for large venues. View All Attribute Definitions

Lens Specification
Throw Ratio:	1.49-2.24:1
Throw Ratio: Throw Ratio View All Attribute Definitions
Lens Shift:	Vertical: -15 to 55%; Horizontal: ±10%
Lens Shift: Allows the lens to move. View All Attribute Definitions
Optical Zoom:	1.5x
Optical Zoom: Optical Zoom View All Attribute Definitions
