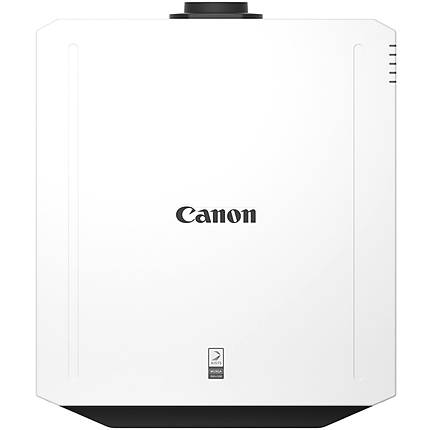

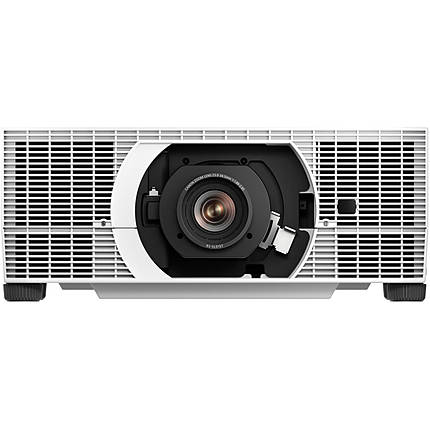

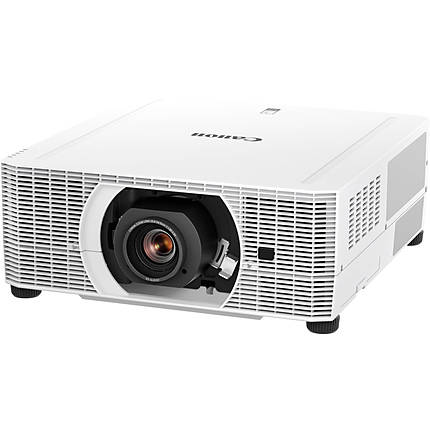

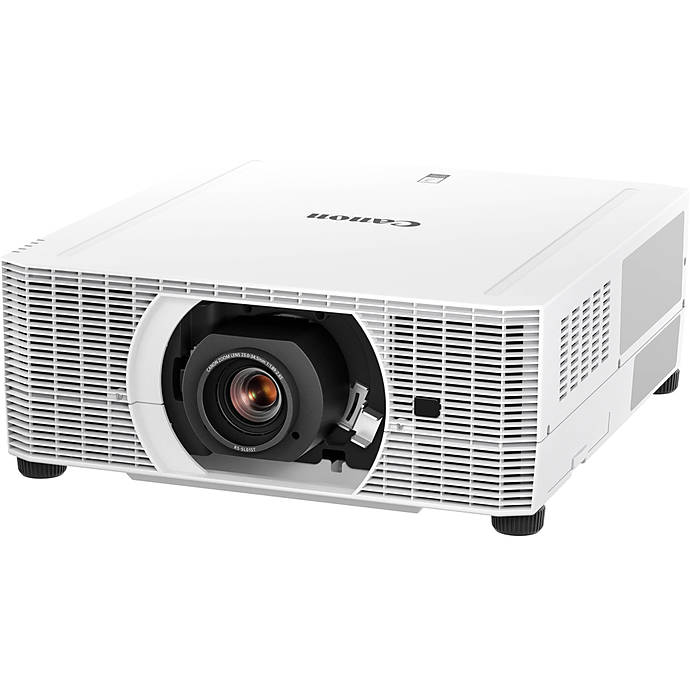

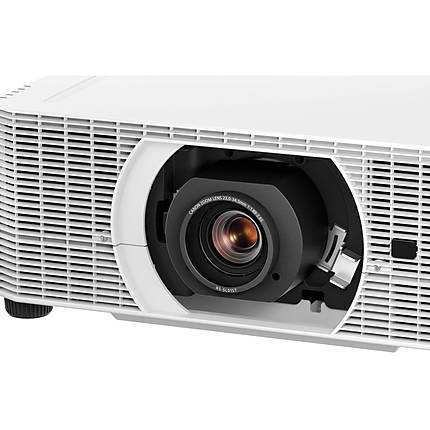

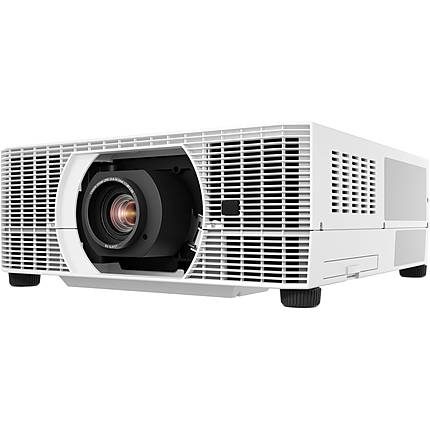

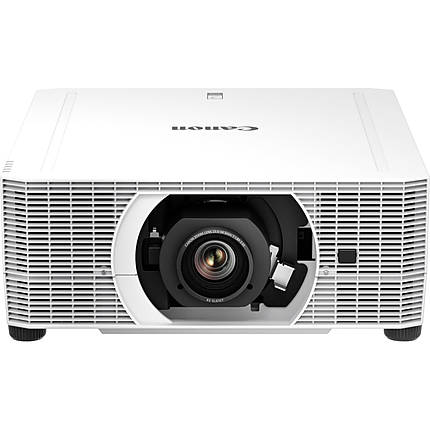

Canon REALiS WUX6600Z RS-SL01ST Standard Lens Kit

Be the first to write a review

Canon REALiS WUX6600Z RS-SL01ST Standard Lens Kit
With 1.5× standard zoom lens
Maximum illumination of 6600 lumens
Dynamic contrast ratio of 4000:1
LCOS technology with AISYS enhancement
Motion blur reduction
HDBaseT connectivity
Network Multi Projection
Power management settings
120 to 240 VAC power supply

Color:: White

Color:: The color of the item.

View All Attribute Definitions

Projector Display System:: 3-Chip 0.71" LCoS

Projector Display System:: This is the type of projection used by a projector. Common projection types are LCD, DLP, and CRT.

View All Attribute Definitions

Overview

The Canon REALiS WUX6600Z RS-SL01ST Standard Lens Kit ensures high-resolution reproduction of the image even in ambient lighting. It includes a Canon REALiS WUX6600Z projector and 1.5× standard zoom lens. The projector is built around the LCOS technology with AISYS enhancement that offers a natural motion in the videos and ensures film-like look. You can plug the projector to devices having DVI-I, HDMI, and HDBaseT inputs. An external speaker can be connected to the projector via the 3.5mm audio input. The REALiS WUX6600Z projects images with a maximum brightness of 6600 lumens and contrast ratio of 4000:1. With the WUXGA native resolution of 1920×1200, the projected image looks sharp and vibrant. You can transmit a signal to the projector from your PC over a network via the HDBaseT connectivity. The projector has image options that let you adjust the content as per need. You can recall the stored images settings for quick adjustment. The Network Multi Projection via Wi-Fi allows you to broadcast imagery from multiple PCs. With the Crestron Roomview and AMX Device Discovery compatibility, the projector becomes a part in any institution easily. You can schedule particular operations with a built-in real-time clock. The included 1.5× standard zoom lens features powered zoom and focus operation. It has a throw distance of 10.5 to 15.7 feet for screen sizes of 40 to 600 inches.

Product Reviews

There are no reviews for this product.

Write a review

Specifications

Brand
Canon

Detailed Specifications
Type of Outputs:	1 x 1/8" (3.5 mm) Mini Audio (Output)
Type of Outputs: The available outputs for video and audio on a camera. View All Attribute Definitions
Max. Power Consumption:	Full Brightness: 525 W; Standby Mode (Lamp Off): 1.6 W
Max. Power Consumption: Maximum power consumption that a scanner uses. View All Attribute Definitions
Type of Input Connector:	1 x DVI-I Video (Input); 1 x HDMI Audio/Video (Input); 1 x DisplayPort Audio/Video (Input); 1 x 1/8" (3.5 mm) Mini Audio (Input); 1 x USB Control (Input); 1 x HDBaseT (RJ45) LAN (Input); 1 x RS-232C (DE-9) Control (Input); 1 x 1/8" (3.5 mm) Mini Control/Service (Input); 1 x Component (DE-15) Video Input
Type of Input Connector: This is the type of input connector. View All Attribute Definitions

Physical Specifications
Dimensions:	19.0 x 7.7 x 21.4" (48.3 x 19.6 x 54.4cm)
Dimensions: The measurements of an object. View All Attribute Definitions
Weight:	37.4 lb (16.96kg)
Weight: The physical weight of the item without packaging. View All Attribute Definitions
Color:	White
Color: The color of the item. View All Attribute Definitions

Power System
Power Input:	100 to 240 VAC, 50 / 60 Hz

Brand
Brand:	Canon

Detailed Specs
Other Resolutions:	WUXGA; UXGA; WSXGA+; SXGA+; WXGA+; FWXGA; WXGA; SXGA; XGA; SVGA; VGA

Lens
Focal Length:	23.0 to 34.5mm
Focal Length: The distance between the film and the optical center of the lens when the lens is focused on infinity. View All Attribute Definitions

Scanner Data
Scan Size:	Horizontal: 15.625 - 75 kHz;ertical: 24 - 60 Hz
Scan Size: The size an image is scanned. View All Attribute Definitions

Image Display
Projector Light Source:	Laser Phosphor
Projector Light Source: This is the type of light source used in projecting an image. View All Attribute Definitions
Projector Display System:	3-Chip 0.71" LCoS
Projector Display System: This is the type of projection used by a projector. Common projection types are LCD, DLP, and CRT. View All Attribute Definitions
Contrast Ratio:	4000:1
Contrast Ratio: Measure of a display system. View All Attribute Definitions
Projector Image Size:	40 to 600" (1.0 to 15.2m)
Projector Image Size: This is the maximum size a projector is recommended to display. View All Attribute Definitions
Projector Brightness:	6600 Lumens
Projector Brightness: This is the maximum brightness for a projector usually measured in Lumens. 2000 Lumens is considered good for small and portable projectors while 4500 Lumens is considered super bright and practical for large venues. View All Attribute Definitions

Lens Specification
Throw Ratio:	1.49-2.24:1
Throw Ratio: Throw Ratio View All Attribute Definitions
Lens Shift:	Vertical: -15 to 55%; Horizontal: ±10%
Lens Shift: Allows the lens to move. View All Attribute Definitions
Optical Zoom:	1.5x
Optical Zoom: Optical Zoom View All Attribute Definitions
