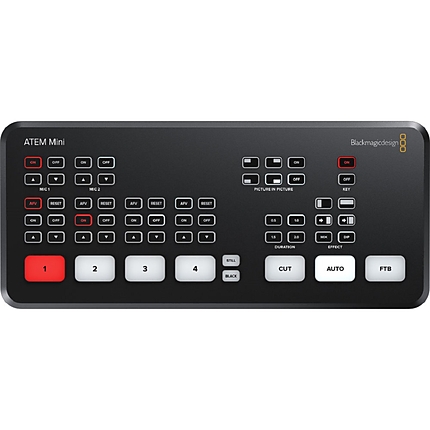

Blackmagic Design ATEM Mini HDMI Live Stream Switcher
Key Features
- 4-Channel Live Stream HDMI Switcher
- Input/Output up to 1080p60 10-Bit 4:2:2
- 2-Channel Digital Audio Mixer
- HDMI Output, Ethernet ATEM Control
OVERVIEW
ATEM Mini features 4 HDMI inputs and has an intuitive, easy to use design that makes it possible for anyone to live stream multi camera productions online via services and software such as YouTube Facebook Live or even Skype. Simply connect 4 high quality HDMI inputs that can be used for live switching cameras, computers or even game consoles. You get a built in DVE for exciting picture in picture effects, broadcast quality transitions, upstream keyers for removing blue and green screen background, a downstream keyer for superimposing custom graphics, audio inputs a mixer, and more. To stream, ATEM Mini also has a USB output that works like a webcam, so you can connect to any video software. There's also HDMI video out for projectors.
Brand
recording data
| Color Space | Rec. 709 |
physical specifications
| Dimensions | 9.4 x 4.1 x 1.4" / 23.8 x 10.4 x 3.6 cm |
detailed specifications
| Input | 4 x HDMI Type A <br /> 2 x 3.5 mm Stereo Analog Audio <br /> 1 x RJ45 Ethernet |
| Output | 1 x HDMI <br /> 1 x USB Type-C (Computer/Webcam) |
| Weight | 19.4 oz / 550 g |
| Operating System Support | Apple macOS 10.13, 10.14, or Later Windows 10 |
| Video Input Formats | HDMI Resolutions for Computers: <br /> 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 <br /> 1080i: 60, 59.94, 50 <br />720p: 60, 59.94, 50 |
| Video Input Formats | HDMI Video: <br /> 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 <br /> 1080i: 60, 59.94, 50 <br /> 720p: 60, 59.94, 50 |
| Video Output Formats | 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 |
| Video Sampling | 4:2:2 |
| Color Precision | 10-Bit |
- ATEM Mini
- External 12V DC power supply with international socket adapters
- 12 Months Limited Manufacturer's Warranty.
