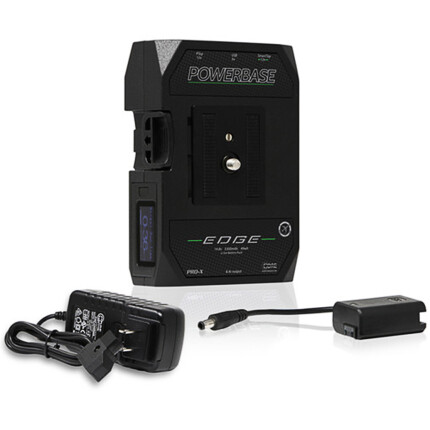

Core SWX Powerbase EDGE Battery with NP-FZ100 Cable and D-Tap Charger

Core SWX
Product #:
Manufacturer #:
  • Capacity: 49wh(14.8vdc, 3.3Ah )
  • Size: 5.1” x 3.6” x 1.55”
  • Weight: 1.3lbs.
  • Normal Runtime: approx. 8.25 hours
  • Max Continuous Load: 8A
Our Price: $249.00

Earn 498 U-REWARDS Loyalty Points

Pickup unavailable at Fairfield, NJ

No sales tax outside of New Jersey

Free Shipping (Continental US Only)

Free Shipping

We offer Free Shipping (7-10 Day delivery) for this item when ordered through our Web Site.

Free shipping is for the 48 Contiguous States only (PO Boxes, FPO/APO, Hawaii, Puerto Rico, Alaska, and Guam excluded).


The Powerbase Edge is a feature-rich "small-form" Cine and DSLR pack, in a V-mount form. The 14.8V Lithium Ion pack includes one 8V port to power various cameras, two USB output and two power tap outputs, one of which being a SmartTap. The 8V port provides a common power output for the majority of DSLRs and small-form cine cameras on the market which utilize small 7.4V Li-Ion battery packs. There are an assortment of dummy battery cable attachments available which insert into that 8V port. In addition to powering the camera, two on-board powertaps are accessible to power monitors, lights, wireless transmitters, etc. The two available USB ports are a welcoming addition to power/charge mobile devices on the fly, as well as power any 5V accessories (i.e. select audio recorders).

As it is often difficult to approximate runtime when powering the camera as well as multiple devices, the Powerbase Edge has a built-in runtime LCD, to deliver exact battery expectancy to the minute. The LCD also has a button activated backlight to be view-able in any environment. As with it's predecessor, the Edge has a quick release plate to attach underneath the camera or quickly attach/detach to a rig or camera cage. It is 30% smaller then the Powerbase 70 yet can still withstand the draw of a full size Cinematic cameras. Includes PB70-C15 charger and Sony a7 FZ100 battery cable.

Product Reviews

There are no reviews for this product.

Write a review


Core SWX
Physical Specifications
Dimensions: 5.1 x 3.6 x 1.6"
The measurements of an object.

View All Attribute Definitions

Battery/Charger Attributes
Battery Capacity: 49 Wh
Weight: 1.3 lb / 0.59 kg
Connector: 2 x D-Tap / 2 x USB Type-A
Power System
Battery Type: V-Mount
Battery Type:
The type of battery for a device. Some cameras use single use alkaline while others use rechargeable lithium batteries.

View All Attribute Definitions

Brand: Core SWX

In The Box

  • Core SWX Powerbase EDGE V-Mount Battery
  • Core SWX Powerbase EDGE Cable for Sony NP-FZ100 Devices
  • Core SWX PB70C15 D-Tap Wall Charger
