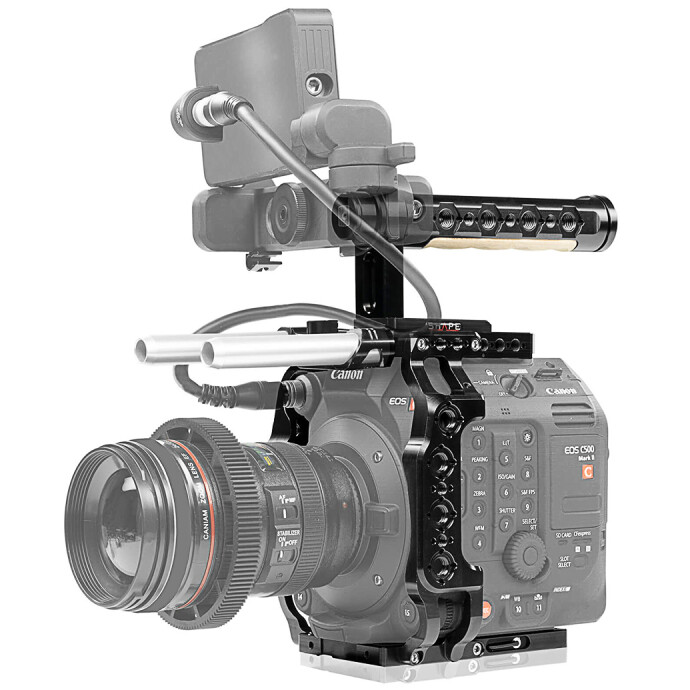

Shape Canon C500 Mark II Cage with Top Handle

Compatible with the Canon EOS C500 Mark II
Formfitting cage with Arri rosette and mounting options
Top plate with 15 mm rod bloc and 15 mm 4” rods

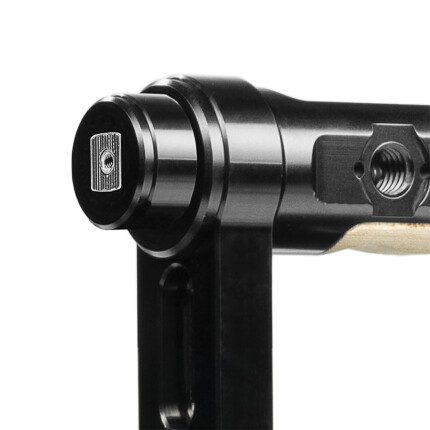

Top handle with multiple mounting options
Made of CNC aluminum

overview

Add accessories and handheld functionality to your Canon EOS C500 Mark II camera with this rig kit from SHAPE. It includes a form fitting cage with Arri rosette and a top handle with several threaded holes. The bottom plate of the cage attaches to the rear of the camera to support it on the baseplate.

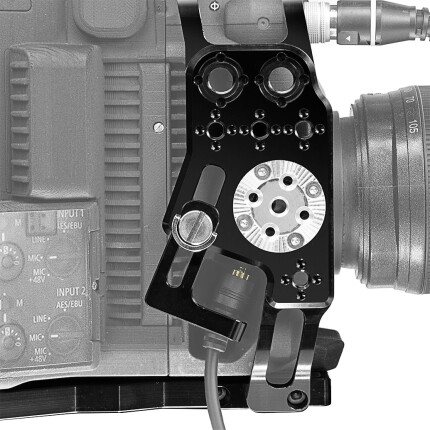

Canon C500 Mark II, C300 Mark III camera cage

Add accessories and handheld functionality to your Canon EOS C500 Mark II camera with this kit made of CNC aluminum. It includes a form fitting side plate with Arri rosette , a top plate and a rear insert plate connecting together to protect your camera. The kit features several 1/4-20 and 3/8-16 threaded holes with anti rotating holes. The top plate is also designed to fit the native Canon EOS C500 Mark II handle.

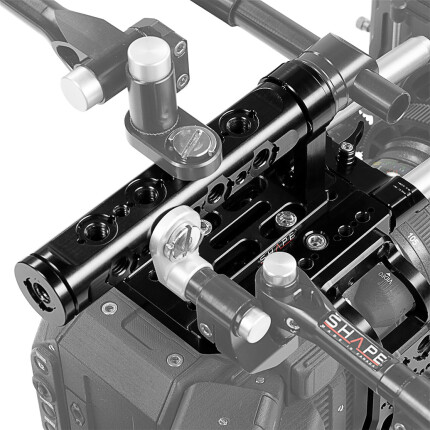

Canon C500 Mark II, C300 Mark III top plate

Lightweight and robust CNC machined aluminum top plate designed to fit with the native Canon EOS C500 Mark II top handle. The top plate offers 1/4-20 and 3/8-16 threads with Arri standard anti rotating holes, which can be used to attach options around the camera. The top plate comes with a 3/16’’ Hex wrench and (4) captive screws ¼-20 3/8 to attach the top plate to the camera

Top side: (8) ¼-20 and (2) 3/8-16 threaded holes with Arri anti rotating holes
Top side: (18) ¼-20 threaded holes
Sides: (10) ¼-20 threaded holes with Arri anti rotating holes

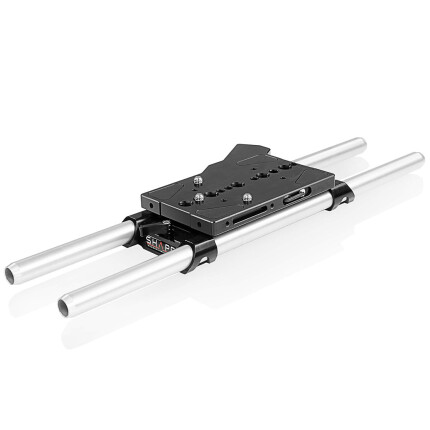

Canon C500 Mark II, C300 Mark III adapter plate

The Canon EOS C500 Mark II Adapter Plate let you quickly attach your camera to your rig. The position of the captive screws perfectly matches the threaded holes of the Canon EOS C500 Mark II camera base.

Product Reviews

There are no reviews for this product.

Write a review

Specifications

Brand
Shape

Detailed Specifications
Material:	CNC Aluminum
Material: The substance that something is made out of. View All Attribute Definitions
Mounting:	Top: 18 x 1/4"-20 \| 8 x 1/4"-20 (with Anti-Twist Divots) \| 2 x 3/8"-16 ( with Anti-Twist Divots)
Mounting: This is the mounting options for a device. Cameras are often mounted on a tripod, but there are other mounts to connect video cameras to bikes, cars, and other places. View All Attribute Definitions
Compatibility:	Canon C500

Physical Specifications
Dimensions:	9.49 x 5.83 x 6.40 in
Dimensions: The measurements of an object. View All Attribute Definitions

Brand
Brand:	Shape

Lens Specification
Weight:	2.12 lbs / 0.96 kg
Weight: Weight View All Attribute Definitions

In The Box

SHAPE Camera Cage for Canon C500 Mark II
SHAPE Canon C500 Mark II Adapter Plate
SHAPE Top Plate for Canon C500 Mark II
SHAPE Top Plate for Canon C500 Mark II
SHAPE 15mm Aluminum Rods (Pair, 4")
15mm Rod Clamp
2 x Rod Clamp to top Plate Mounting Screw
4 x Captive 1/4"-20 Camera Mounting Screw
Allen Wrench
