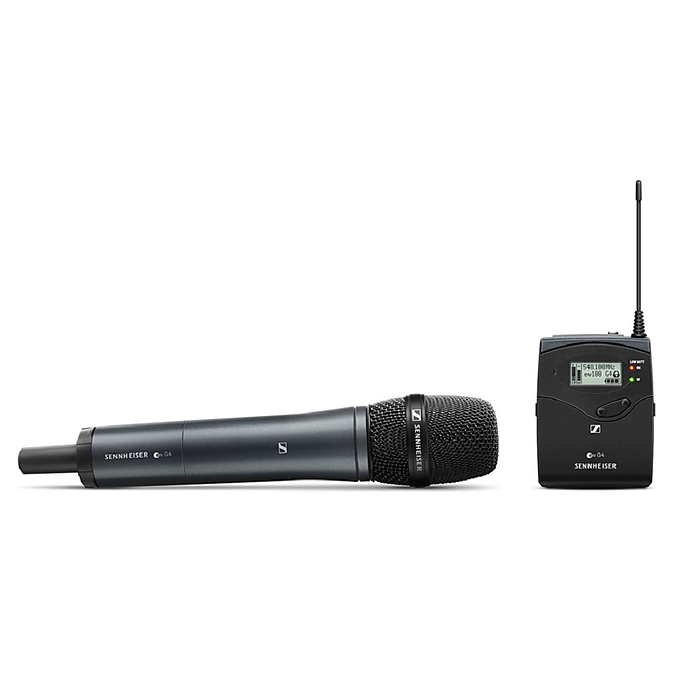

Sennheiser EW 135P G4 Cam-Mount Cardioid Handheld System A1: 470-516 MHz

Product #:
Manufacturer #:
  • For Mobile Journalist, Presenters
  • MMD 835 Dynamic Cardioid Mic Capsule
  • Lightweight Handheld Transmitter
  • Diversity Camera-Mount Receiver
Our Price: $699.00

Earn 1398 U-REWARDS Loyalty Points

Usually Ships in 7-14 days.

Pickup unavailable at Fairfield, NJ

Alert icon Alert me when this item is in-stock

No sales tax outside of New Jersey

Free Shipping (Continental US Only)

Free Shipping

We offer Free Shipping (7-10 Day delivery) for this item when ordered through our Web Site.

Free shipping is for the 48 Contiguous States only (PO Boxes, FPO/APO, Hawaii, Puerto Rico, Alaska, and Guam excluded).



A broadcast quality sound solution. Providing the highest flexibility for your outdoor shoots and field recording applications. A robust wireless microphone system that offers excellent sound quality, simple mounting and ease of use.

  • Rugged all-in-one wireless system with high flexibility for broadcast quality sound

  • Excellent sound and construction quality

  • Easy to use and fast setup time

  • Powerful and reliable wireless transmission

  • Range: up to 100 meters / 330 feet

  • Up to 8 hours of operation time

Product Reviews

There are no reviews for this product.

Write a review


Microphone Specifications
Form Factor: Handheld Capsule
Polar Pattern: Cardioid
Capsule: Dynamic
Sound Field: Mono
Sensitivity: 2.1 mV/Pa
Maximum SPL: 154 dB SPL Peak
Detailed Specifications
Type of Microphone: Handheld Microphone
Type of Microphone:
Type or brand of microphone used to capture audio.

View All Attribute Definitions

Transmission System: Analog UHF
Transmission System:
This is the type of wireless transmission system for a remotely triggered device, such as a pocketwizard.

View All Attribute Definitions

# Of Channels: 1680
Modulation: Wideband FM
Maximum Operating Range: 330' / 100.6 m (Line of Sight)
Maximum Operating Range:
This is the maximum amount of distance of a wireless device before it loses transmission.

View All Attribute Definitions

Frequency Range: A1: 470 to 516 MHz
Frequency Range:
This is the approximate frequency range that wireless device can operate on.

View All Attribute Definitions

Physical Specifications
Dimensions: 2 x 10.4" / 50 x 265 mm
The measurements of an object.

View All Attribute Definitions

Dimensions: 2.5 x 3.2 x 0.9" / 64 x 82 x 24 mm
The measurements of an object.

View All Attribute Definitions

Wireless Transmitter Specifications
Weight: 15.9 oz / 450 g (with Batteries)
Form Factor: Handheld
Power Supply: 2 x AA Battery (Included)
RF Output Power: 30 mW
Frequency Response: 80 Hz to 18 kHz (Mic)
80 Hz to 18 kHz (Line)
Brand: Sennheiser
Wireless Receiver Specifications
Power Supply: 2 x AA Battery (Included)
Squelch: 5 to 25 dBµV
Mounting Options: Shoe-Mount (with Included Hardware)
Audio I/O: 1/8" / 3.5 mm TRS Female Unbalanced Output (Lockable)
Weight: 5.6 oz / 160 g (with Batteries)
Form Factor: Camera-Mount

In The Box

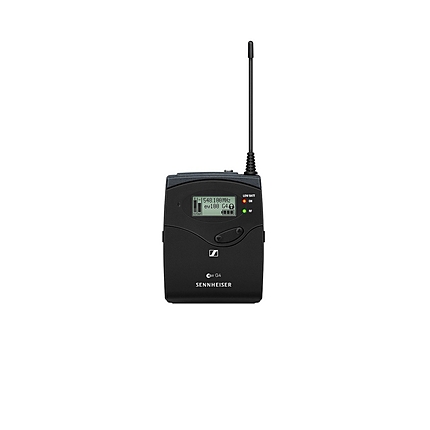

  • EK 100 G4 camera receiver

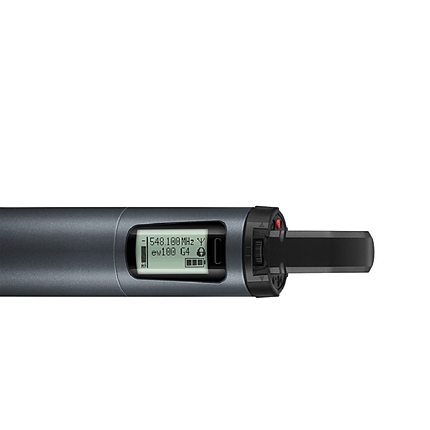

  • SKM 100 G4 handheld transmitter
  • MMD 835-1 microphone head
  • MZQ 1 microphone clamp
  • 4 AA batteries
  • CA 2 camera adapter
  • CL 1 3.5 mm jack cable
  • CL 100 XLR to 3.5 mm jack adapter cable
