overview

Use the D-Box Camera Power and Charger from SHAPE to power your Sony a7 series camera and other accessories simultaneously with a V-Mount battery (not included) and continuous AC power. Multiple LED indicators on the D-Box show battery and power status. The D-Box is designed to power your camera while also powering items like a monitor, smartphone, or lights, and when plugged into an AC outlet with the included AC adapter, you can remove the battery safely without powering down your camera. The D-Box has a V-Mount battery plate, and on the side, there are four power outputs: one 20W, 5V/4A, one 40W, 8V/5A, one 60W, 12V/5A, and one D-Tap 100W, 16.8V/6A. On top there’s a 5V/4A USB Type-A port to power your smartphone or USB accessory. You can power multiple items simultaneously with up to 100W of total power consumption. There are also threaded holes on the back of the plate for mounting options. The charger comes with a cable connector to power your Sony a7 series camera, an 8V output cable, a 15 mm rod mount to use with your 15 mm LWS rod system, a removable Delta plate, and an Allen wrench and screws for mounting your gear.

• Compatible with Sony A7 series
• V-Mount Battery Plate with Safe Lock (Optional Gold Mount converter GVRPC)
• Small size and lightweight battery plate (0.8 lbs; 0.36 kg)
• When the D-Box is plugged in, safely disconnect and reconnect the battery without powering down your rig
• 5 outputs: (1) 5V:4A:20W, (1) 8V:5A:40W, (1) 12V:5A:60W, (1) 16.8V:6A:100W, USB 5V:4A
• Supports up to 100W power consumption from the device
• Comes with a robust 15 mm Rod Mount with locking and angle adjustment system
• Threaded holes at the back of the plate for mounting on a cheeseplate
• LED indicators for power features
• Delta plate included to mount on the D-box main unit
• Knob system to lock and adjust the position of the D-box unit

Product Reviews

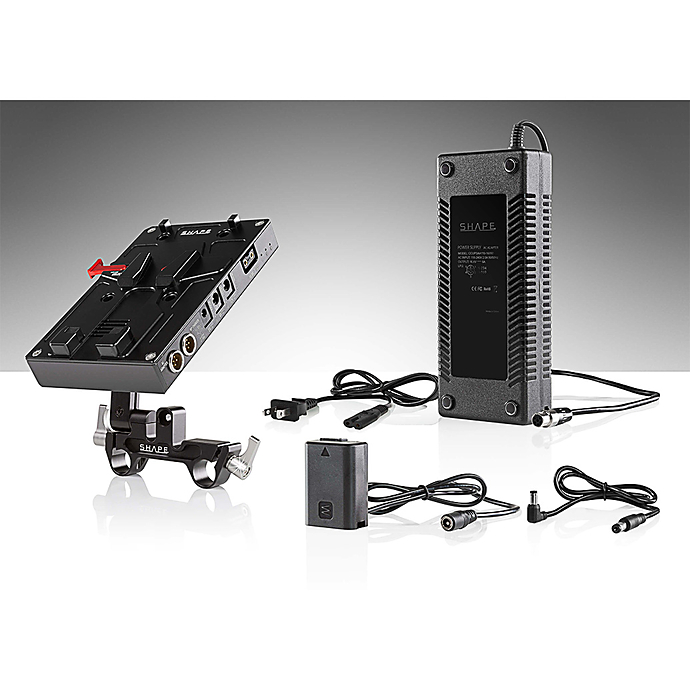

In The Box

•  D-BOX POWER & CHARGER (V-MOUNT)
• POWER SUPPLY
• AC POWER CABLE
• CABLE OUTPUT CONNECTOR (5V, 8V, 12V)

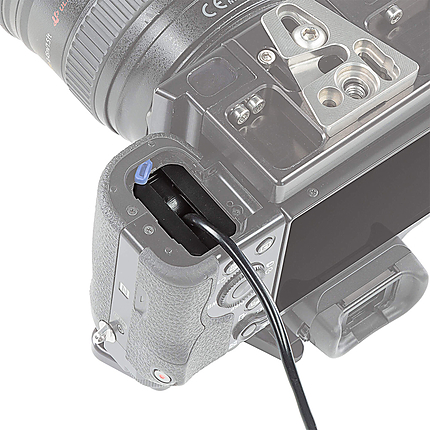

• CABLE CONNECTOR (SONY A7 SERIES)
• 15MM ROD MOUNT DEVICE
• REMOVABLE DELTA PLATE
• TOOL BOX KIT (ALLEN KEY, MOUNTING SCREWS)
