Shape Complete Solution for Canon C500 Mark II

overview

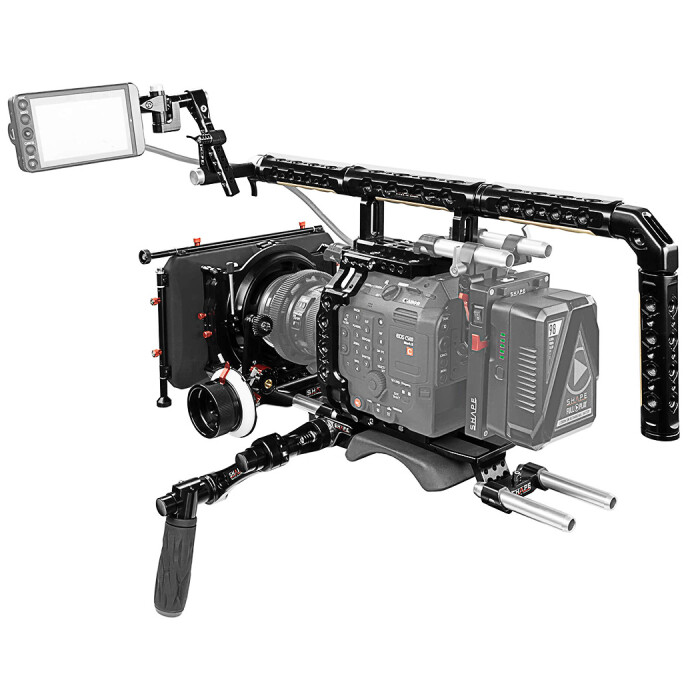

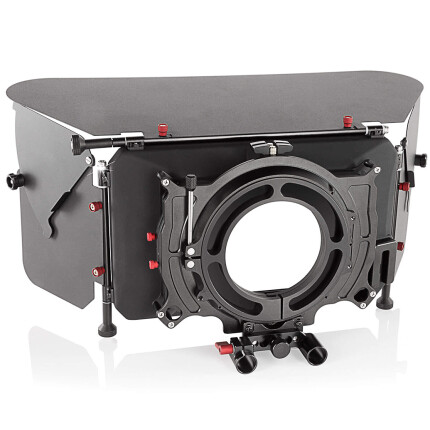

Add accessories and handheld functionality to your Canon EOS C500 Mark II camera with this Pro Shoulder Rig Kit from SHAPE. This extensive kit includes a shoulder mount baseplate with 15mm rod system, a form fitting cage with Arri rosette, a rosette handle with black push-button, a viewfinder rod clamp with 19 mm push-button, a modular top handle, a 4 x 5.6" matte box, and a follow focus pro. The baseplate includes an integrated shoulder mount that allows you to convert your tripod-mounted camera into a handheld shoulder rig. The bottom of the cage attaches to the rear of the camera to support it on the baseplate. The 15mm rods allow you to mount additional accessories, as well as the 4 x 5.6" matte box and the follow focus pro. The push-button handle attaches to the baseplate and can rotate using the rosette joints for the most comfortable position. The modular top handle can be adjusted to be longer or shorter for your preference, and the viewfinder rod clamp with 19 mm Push-button attaches to the front of the top handle.

Canon C500 Mark II, C300 Mark III camera cage

Add accessories and handheld functionality to your Canon EOS C500 Mark II camera with this kit made of CNC aluminum. It includes a form fitting side plate with Arri rosette , a top plate and a rear insert plate connecting together to protect your camera. The kit features several 1/4-20 and 3/8-16 threaded holes with anti rotating holes. The top plate is also designed to fit the native Canon EOS C500 Mark II handle.

Canon C500 Mark II, C300 Mark III adapter plate

The Canon EOS C500 Mark II Adapter Plate let you quickly attach your camera to your rig. The position of the captive screws perfectly matches the threaded holes of the Canon EOS C500 Mark II camera base.

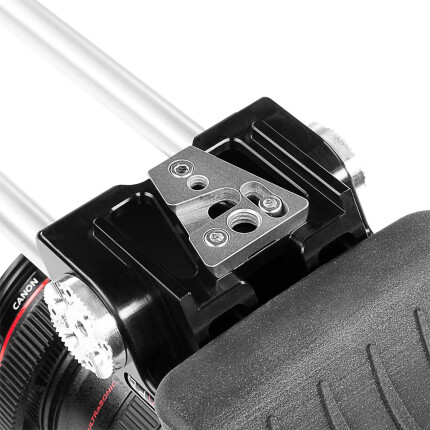

Canon C500 Mark II, C300 Mark III top plate

Lightweight and robust CNC machined aluminum top plate designed to fit with the native Canon EOS C500 Mark II top handle. The top plate offers 1/4-20 and  3/8-16 threads with Arri standard anti rotating holes, which can be used to attach options around the camera. The top plate comes with a 3/16’’ Hex wrench and (4) captive screws ¼-20 3/8 to attach the top plate to the camera

• Top side: (8) ¼-20 and (2) 3/8-16 threaded holes with Arri anti rotating holes
• Top side: (18) ¼-20 threaded holes
• Sides: (10) ¼-20 threaded holes with Arri anti rotating holes

Canon C500 Mark II, C300 Mark III cage and top handle

No BaseplateAdd accessories and handheld functionality to your Canon EOS C500 Mark II camera with this rig kit from SHAPE. It includes a form fitting cage with Arri rosette  and a top handle with several threaded holes. The bottom plate of the cage attaches to the rear of the camera to support it on the baseplate.

Canon C500 Mark II, C300 Mark III Push-button viewfinder mount

The Push-Button Viewfinder Mount is designed with a 15mm rod with push-button and a L-bracket viewfinder clamp with ratchet knob. It features two points of articulation for horizontal, vertical, and transversal adjustment of your viewfinder. By simply pressing the SHAPE patented push-button, you are allowed a 360-degree rotation to place your view finder in the best position for your use. Push, adjust, release, and then its lock.

DOUBLE QUICK HANDLE ARRI ROSETTE SINGLE SHADOW

Left or right ARRI Rosettes handgrips that can be attached to cameras or camera support hardware that has standard ARRI rosettes. The arm features three points of articulation (2 Push-button, 1 ratchet knob) allowing you to adjust the arm for your comfort. The arm attach to your camera or support via an ARRI compatible rosette with spring-loaded locking levers, which allow you to lock your arms in place. The arm is also designed with (2) ¼-20 and (2) 3/8-16 threaded holes with locking attachment stoppers for additional mounting options and to strongly secure the camera accessories in position. SHAPE is well known for its patented Push-button handle, now used by so many professionals in the industry. The technology was developed to give filmmakers quick and easy adjustment. By simply pressing the button, you are allowed a 360-degree rotation to place the handle in the best position for your use. The Push-button system on the Handle articulating joint provides additional articulation near the rosette, while a second push-button articulation joint allows you to rotate and precisely position the rubber handgrips.

Follow Focus Pro

Manufactured in sleek black anodized aluminum, this special edition professional follow focus unit combines a refined look with trusted engineering and a classic design. The SHAPE Follow Focus Pro is an industry workhorse and has already proven itself on countless tough shoots all over the world, so you needn’t worry about it letting you down. The SHAPE engineering team is internationally renowned for creating one of the most robust motion picture accessories ever built. It mounts on 15 mm rods and features an adjustable arm which puts the gear at the optimal position for the lens, no matter what the diameter is. Two 0.8 pitch gears come included and give you a choice of either 28 teeth or 43 teeth, depending on the throw distance of the lens. Additional features include two adjustable hard stops, removable marking disc, and an industry standard accessory port for using optional whips and cranks.

15 mm 8" rods

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter
• 8-in length
• Hollow, non-threaded
• Tapered ends for easy connection to a rod block
• Aluminum coated with a clear finish

15 mm 4" rods

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter
• 4-in length
• Hollow, non-threaded
• Tapered ends for easy connection to a rod block
• Aluminum coated with a clear finish
