overview

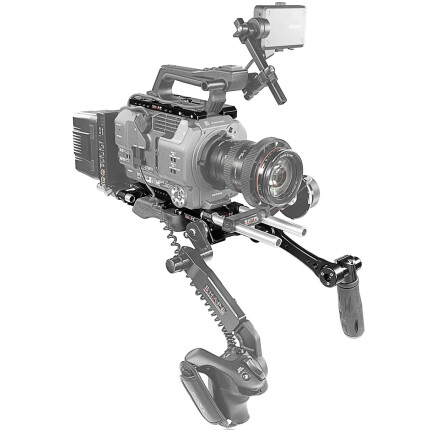

Add accessories and handheld functionality to your Sony PXW-FX9 camera with this Pro Shoulder Rig Kit from SHAPE. This kit includes a shoulder mount baseplate with 15mm rod system, a top plate, a rear insert plate, and a rosette handle with black push-button. The baseplate includes an integrated shoulder mount that allows you to convert your tripod-mounted camera into a handheld shoulder rig. The rear insert plate attaches to the rear of the camera to support it on the baseplate. The 15mm rods allow you to mount additional accessories like a matte box and follow focus. The push-button handle attaches to the baseplate and can rotate using the rosette joints for the most comfortable position.

Sony FX9 V-lock quick release baseplate

The FX9 baseplate is designed to match the Sony FX9 optical center. The bracket system with magnet let you swivel the baseplate to the left for an easy access to the camera screws. It is designed with 2 standard Arri rosettes for handles or accessories mount. The quick release adapter plate is compatible with most VCT tripod plate and there is also a protective rubber pads on top of the plate to protect your camera. Two 15 mm lightweight rod blocs can be fixed to the front and rear of the baseplate, allowing you to install more camera accessories. The safety ratchet knobs are built in a way to apply an optimal pressure to the rods. The thick shoulder pad produces maximum comfort and is made of gel padding and slip-free material. The baseplate is also designed with a sophisticated tool box to store your extra screws and Allen key. Quick access to your extra screws and Allen key can be a time saver, even more so, when you are in the middle of a shoot. The shoulder plate is equipped with 1/4-20 & 3/8-16 threaded holes allowing extra screws to be stored and there is a magnet at the back to attach your Allen key.

Sony FX9 rear insert plate

The rear insert plate is a CNC aluminum support plate compatible with the Sony FX9 camera. The plate mounts to the camera body via three M4 mounting screws. The center of the plate is designed with (3) 3/8-16 and (3) 1/4-20 threaded holes for tripod mount. The large surface of the plate also provides necessary support when the camera is mount to a tripod or a shoulder mount.

Sony FX9 Top plate

Lightweight and robust CNC machined aluminum top plate designed to fit around the native Sony FX9 top handle. The top plate offers an array of (12) 1/4-20 and (12) 3/8-16 threads with Arri standard anti rotating holes, which can be used to attach options around the camera. The Sony FX9 top plate is also designed with a threaded hole to insert your FX9 sensor pin and your FX9 viewfinder cable clamp.

• Top side: (6) 3/8-16 threads with Arri standard anti rotating holes and (7) 1/4-20 threads with Arri standard anti rotating holes
• Side 1 (0.75’’): (6) 3/8-16 threads with Arri standard anti rotating holes and (5) 1/4-20 threads with Arri standard anti rotating holes
• Side 2 (0.5’’): (6) 1/4-20 threads with Arri standard anti rotating holes

15 mm 8 in rods

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter
• 8-in length
• Hollow, non-threaded
• Tapered ends for easy connection to a rod block
• Aluminum coated with a clear finish

15 mm in rods

One pair of SHAPE 15-mm aluminum rods for your compatible camera rig. Mount any 15-mm compatible accessories and form the support structure of your rig.

• 15-mm diameter
• 4-in length
• Hollow, non-threaded
• Tapered ends for easy connection to a rod block
• Aluminum coated with a clear finish

Product Reviews

In The Box

• SHAPE Compact Revolt Shoulder Baseplate
• SHAPE Replacement Pad for REVOLT VCT Universal Baseplate
• SHAPE 15mm Aluminum Rods (Pair, 8")
• SHAPE 15mm Aluminum Rods (Pair, 4")
• 2 x 1/4"-20 Screw
• 2 x 3/8"-16 Screw
• 3mm Allen Wrench
• SHAPE Rear Insert Plate for Sony PXW-FX9 Camera

• 2 x Mounting Screw
• Allen Wrench
• SHAPE Top Plate for Sony FX9 Camera

• Allen Key
• 4 x Mounting Screw
• SHAPE Single Handle with ARRI Rosette
