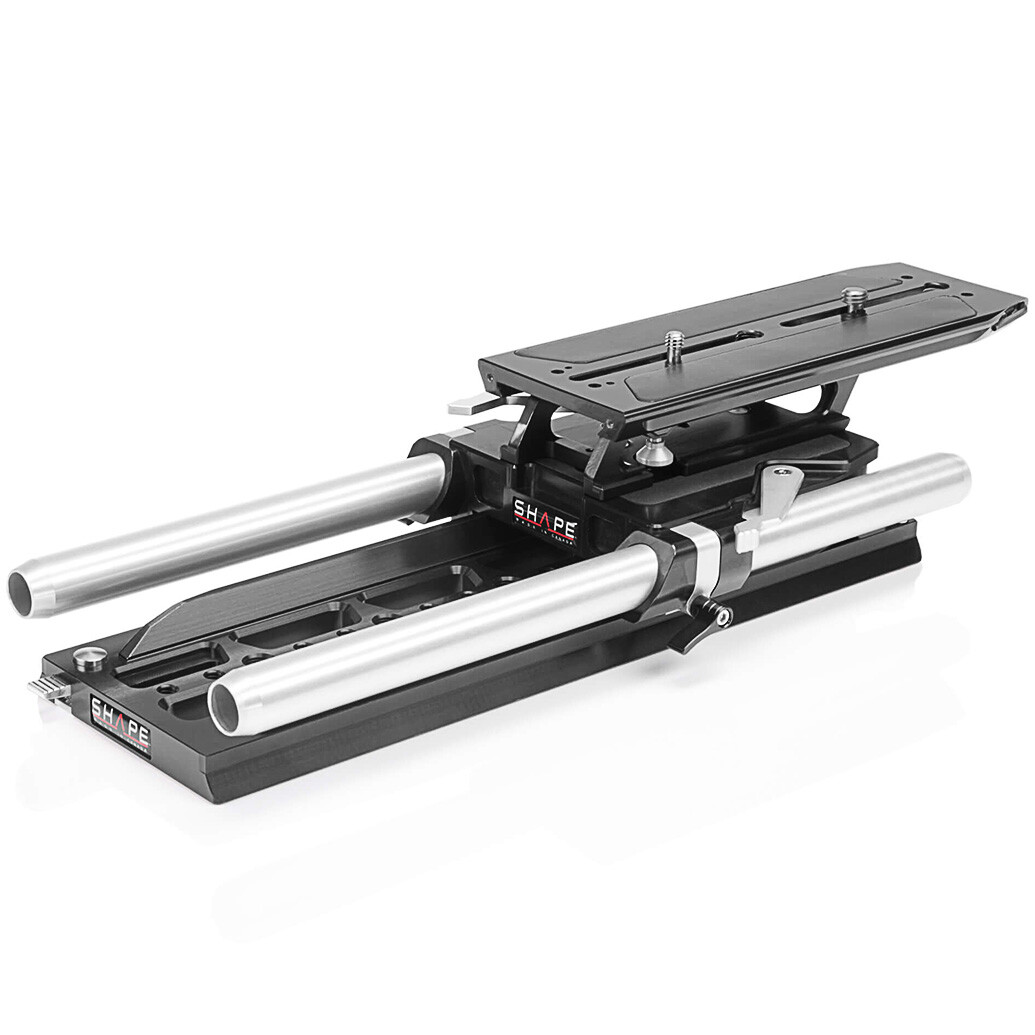

Shape 19mm Studio Sliding Baseplate for Sony Venice

overview

SHAPE lightweight Arri standard 12" dovetail plate

Use this ARRI Standard 12" Dovetail Plate from SHAPE when balancing front- or back-heavy camera loads. The studio bridgeplates 19 mm or 15 mm Arri standard (DPK19, DPK15) can easily slide onto the lightweight ARRI standard 12" dovetail plate for additional leverage and mounting options. Both the aluminum, Teflon-coated design and tapered ARRI dovetail configuration allow your mounted equipment to slide back and forth easily. A stopper screw on one end and a safety latch on the other prevent your equipment from accidentally sliding off the plate. There are twelve 1/4"-20 and five 3/8"-16 threads down the center of the plate for mounting.

SHAPE Bridge plate 19 mm studio Arri standard

The studio bridgeplate can easily slide onto the lightweight ARRI standard 12" dovetail plate (DP12A) for additional leverage and mounting options. It is made of CNC aluminum and it is also designed with locking levers to secure the bridgeplate to the dovetail. The ARRI Standard Studio Bridgeplate comes with two tapered, 12" 19 mm rods (19TUBE12) to easily mount and dismount your camera and accessories. The studio-offset rods are spaced 104 mm apart. One 1/4"-20 and one 3/8"-16 screw allow mounting a variety of cameras, and the plate locks and slides up and down the rods with the use of a locking lever. A flat screwdriver is provided to tighten the mounting screws, and it can be attached to the bridgeplate with a magnet.

19 mm 12" rods

This pair of SHAPE 19 mm Aluminum Rods (12") connect into your camera rig, extend it, and let you add various SHAPE and third-party accessories compatible with 19 mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.

The rods are each 19 mm in diameter, 12 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish.

19 mm 12" rods

This pair of SHAPE 19 mm Aluminum Rods (12") connect into your camera rig, extend it, and let you add various SHAPE and third-party accessories compatible with 19 mm rods. With these two rods and with a few fundamental accessories, you can most certainly even begin building your own rig from scratch.

The rods are each 19 mm in diameter, 12 inches long, hollow, non-threaded, and made of reliable aluminum coated with a clear finish.

Sliding riser and locking lever

The Riser allows to adjust the position of your camera while mounted on the Bridge Plate with respect to the 19 mm Studio Optical Center of the Sony Venice Camera. An easy-to-access locking lever, located on the side of the Riser, enables you to secure the Camera Plate firmly in place. There is also a quick release safety pin that prevents the Camera Plate from sliding off the Riser which is fully engaged when the latch makes an audible “click” sound. Several 1/4"-20 and 3/8"-16 threaded holes are also available for attaching the Riser onto the Bridge Plate. It is also designed to set the Sony Venice camera at proper height with respect to the camera Optical Center
