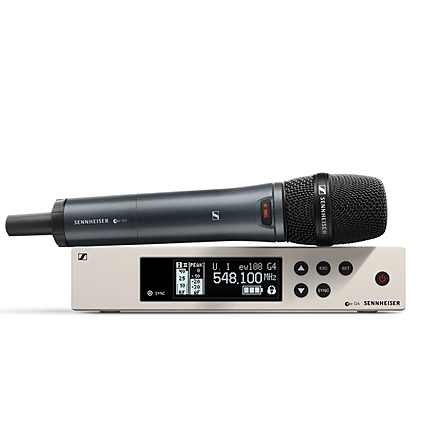

Sennheiser EW 100 G4-935-S Mic System w/ MMD 935 Capsule G: 566-608 MHz
- Product #:
- SEN2074
- Manufacturer #:
- 509739
- UPC:
- 615104308978
- For Presenters and Performers
- MMD 935 Dynamic Cardioid Mic Capsule
- Handheld Transmitter with Mute Switch
- Interchangeable Capsule Design
OVERVIEW
Now even more simple, flexible and reliable: The 100 series has become the first choice for both sound designers and occasional users because of its simple operating concept – and because the system makes no compromises in terms of live sound.
-
Engineered for professional live sound: Rugged all-in-one wireless system for singers and presenters.
-
State-of-the-art live sound featuring Sennheiser‘s renowned e 835, e 845, e 865, e 935, e 945 capsules on a lightweight aluminium transmitter with integrated mute switch
-
True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
-
Easy and flexible wireless synchronization between transmitter and receiver via infrared
-
Fast frequency allocation for up to 12 receivers via new linking functionality
-
Up to 20 compatible channels
-
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
-
Transmission Range: up to 100 meters / 300 feet
-
High RF output power (up to 30 mW) depending on country regulations
Product Reviews
There are no reviews for this product.
Specifications
| Brand | |
|---|---|
| Sennheiser | |
| Microphone Specifications | |
|---|---|
| Form Factor: | Handheld Capsule |
| Polar Pattern: | Cardioid |
| Capsule: | Dynamic |
| Sound Field: | Mono |
| Sensitivity: | 2.5 mV/Pa |
| Maximum SPL: | 154 dB SPL Peak |
| Detailed Specifications | |
|---|---|
| Type of Microphone: | Handheld Microphone |
|
|
| Transmission System: | Analog UHF |
|
|
| # Of Channels: | 1840 |
| Modulation: | Wideband FM |
| Maximum Operating Range: | 330' / 100.6 m (Line of Sight) |
| Frequency Range: | G: 566-608 MHz |
|
|
| Physical Specifications | |
|---|---|
| Dimensions: | 2 x 10.4" / 50 x 265 mm |
|
|
| Dimensions: | 8.3 x 1.7 x 7.5" / 212 x 43 x 190 mm |
|
|
| Wireless Transmitter Specifications | |
|---|---|
| Weight: | 15.9 oz / 450 g (with Batteries) |
| Form Factor: | Handheld |
| Power Supply: |
2 x AA (Included) 1 x Sennheiser Accupack (Not Included, Replaceable) |
| RF Output Power: | 30 mW |
| Brand | |
|---|---|
| Brand: | |
| Brand: | Sennheiser |
| Wireless Receiver Specifications | |
|---|---|
| Power Supply: | 12 V DC at 300 mA (Included) |
| Mounting Options: | Rackmount (with Included Hardware) |
| Audio Output: |
XLR Output: +18 dBu (Balanced) 1/4" Output: +12 dBu (Unbalanced) |
| Audio I/O: |
XLR 3-Pin Male Balanced Output 1/4" TRS Female Unbalanced Output |
| Weight: | 2.2 lb / 980 g |
| Form Factor: | Tabletop |
In The Box
- EW 100 G4-935-S Wireless Handheld Microphone System with MMD 935 Capsule (G: 566 to 608 MHz)
- EM 100 G4 Wireless Receiver (G: 566 to 608 MHz)
- SKM 100 G4-S Handheld Wireless Microphone Transmitter with Mute Switch, No Mic Capsule (G: 566 to 608 MHz)
- MMD 935B Cardioid Dynamic Capsule for Handheld Transmitters (Black)
- MZQ1 Clip for SKM Wireless Handheld Microphones
- 2 x Rod Antennas
- RJ10 Cable
- Power Supply for XSW and EW G4 100 Series Receivers
- 2 x AA Batteries
- Rackmount Kit
- Limited 2-Year Warranty
