Core SWX Hypercore 150Wh Battery (V-Mount)

Core SWX
Product #:
Manufacturer #:

    • 150Wh Lithium-Ion V-Mount Battery
    • Charges on Anton/Bauer Lithium-Ion chargers
    • Supports up to 10A Continuous Draw
    • 1000 charge/discharge cycle rating
    • Powertap and USB outputs
    • 4-LED Gauge
    • Intellicom Backlit LCD
    • High Density cells
    • More amperage per cell
    • Less number of cells means less of a chance of a failure, less heat, longer service life
    • All safety features incorporated into the battery(Over/Under Voltage, Over/Under Current, Temperature, etc.)
    • Battery dictates charge routine
    • Non-Slip Rubberized Housing
    • Time, Grid, % Runtime/Capacity Displays
    • Refreshes LCD Every 5 Seconds
    • D-Tap and USB Accessory Outputs
    • Compatible with Core SWX GPM-X2S Mini Dual Travel Battery Charger (V-Mount)
    14.8 VDC
    Our Price: $587.00

    Earn 1174 U-REWARDS Loyalty Points

    Usually Ships in 7-14 days.

    Pickup unavailable at Fairfield, NJ

    Alert icon Alert me when this item is in-stock

    No sales tax outside of New Jersey

    Free Shipping (Continental US Only)

    Free Shipping

    We offer Free Shipping (7-10 Day delivery) for this item when ordered through our Web Site.

    Free shipping is for the 48 Contiguous States only (PO Boxes, FPO/APO, Hawaii, Puerto Rico, Alaska, and Guam excluded).


    The Hypercore series of battery packs employ the very latest in Lithium Ion technology. The Hypercore cell was constructed with the specific purpose of handling and sustaining high power draws. The cells can withstand up to a 10A draw(12A peak) for extended periods of time while not diminishing service life. The HyperCore series delivers the most value and ROI for those who require battery packs to stand the test of time and deliver unrivaled performance. The battery cells are encased in an over molded, rubberized housing, something Core SWX has been offering for nearly 8 years. The case provides additional protection against accidental impacts; and the rubber texture reduces the chance of the battery slipping out of your hands.

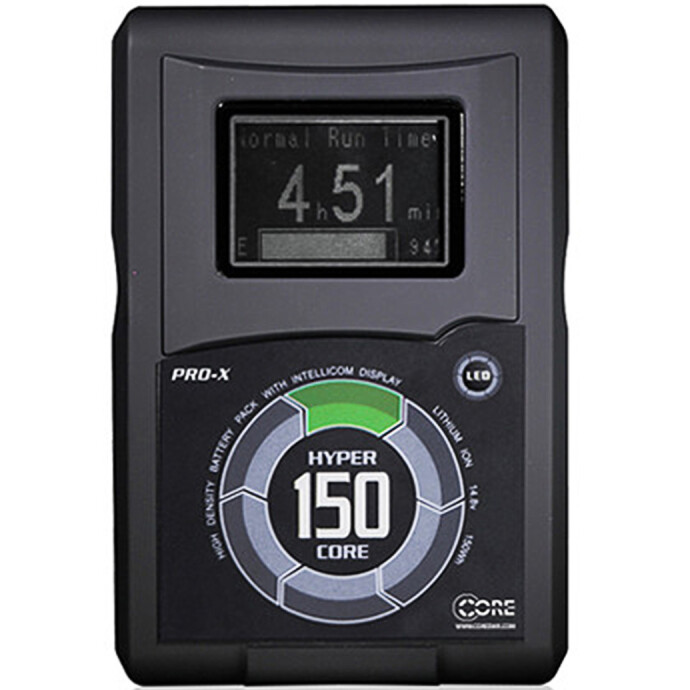

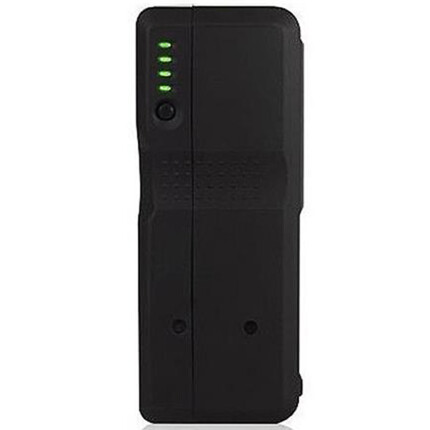

    In addition, the battery pack is outfitted with a Runtime LCD on the front of the pack. The front provides a canvas to place a large, backlit LCD on the most visible part of the battery. For ENG cameramen, there is also a 4-stage LED display on the side of the battery, which can be used to glance at leftover battery capacity. Getting back to the LCD, the LCD is multipurpose. Not only will the LCD inform you how much time you have left when in use(in hours and minutes), but it will also give you an estimation based on a dummy load of 30w, when in standby(disconnected from any devices). Furthermore, this serves a third purpose as a charge indicator, by computing remaining charge time when on a charger.

    The battery doesn't just compute a simple calculation when deciphering runtime. Recognizing the most important feature of the battery for a video professional, Core SWX' proprietary on-board fuel computer leverages the Hypercore's "smart" battery platform to take an aggregate view of the past usage of the battery; charge and discharge performance, to provide the most accurate Runtime calculation, down to the minute!

    Each battery is outfitted with an accelerometer to detect motion, a similar component that is in mobile devices. The accelerometer is tied to a clocking algorithm to gauge how long the battery is not in use. One of the issues with all battery packs is self-discharge when not in use. Hypercore battery packs with go to sleep or hibernate when there is no battery usage or movement after a 48hr period. The LCD shuts down as well to preserve state of charge. Once you pick up the battery or the battery detects the slightest movement, the battery pack awakens, coming back to life at its maximum capacity.

    As with all Core SWX brick battery offerings, the Hypercore series is available in V-mount and 3-mounts; and have an integrated P-tap connection the side of the battery allowing you to power any 12vdc device. In addition it is one of the first battery products in the industry to incorporate a USB power output. Being proactive, Core SWX recognizes the importance of mobile devices in production nowadays and by adding the USB port it allows you to accessible charging for your mobile device.

    Any charger within Core SWX' charger lineup will charge Hypercore, but the battery series is also the most cross platform, charger-compatible in the industry today. The V-mount offerings (Hypercore S) will also charge on IDXTM and SonyTM, allowing you to maximize service life out of your current charger.

    Product Reviews

    There are no reviews for this product.

    Write a review


    Core SWX
    Physical Specifications
    Dimensions: 3.8 x 5.9 x 2.4"
    The measurements of an object.

    View All Attribute Definitions

    Battery/Charger Attributes
    Battery Capacity: 150 Wh
    Weight: 2.4 lbs / 1.1 kg
    Compatible Charger: Core SWX GPM-X2S Mini Dual Travel Battery Charger (V-Mount)
    Voltage: 14.8 VDC
    Connector: 1 x D-Tap Output | 1 x USB Type-A Output
    Power System
    Battery Type: Lithium ion
    Battery Type:
    The type of battery for a device. Some cameras use single use alkaline while others use rechargeable lithium batteries.

    View All Attribute Definitions

    Brand: Core SWX

    In The Box

    • Core SWX HyperCore 150Wh 14.8V V-Mount Battery
