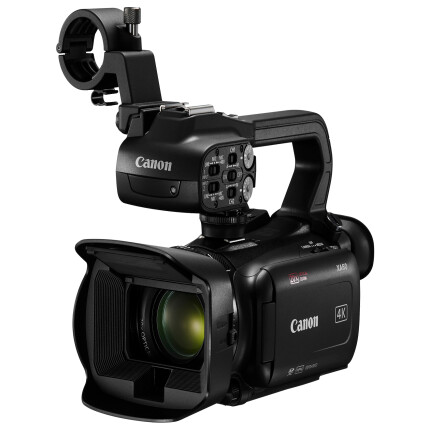

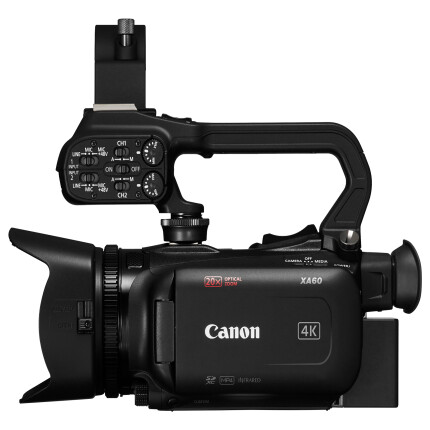

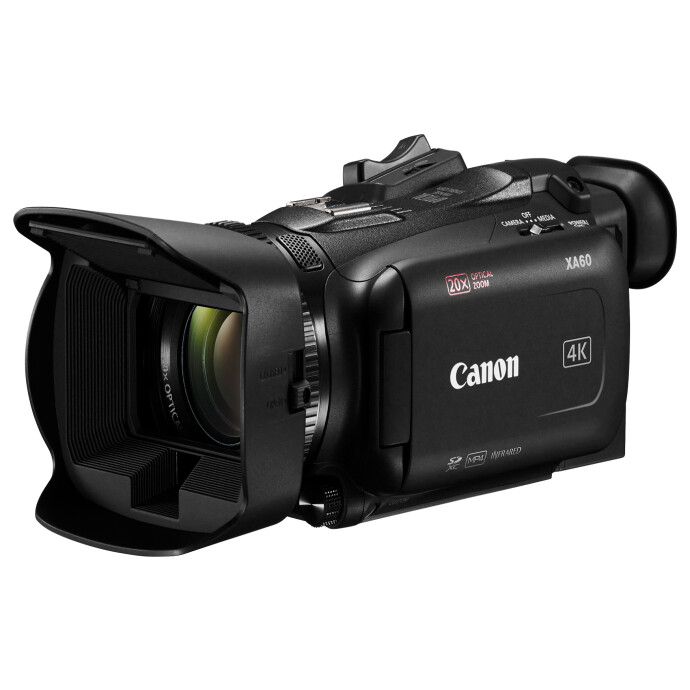

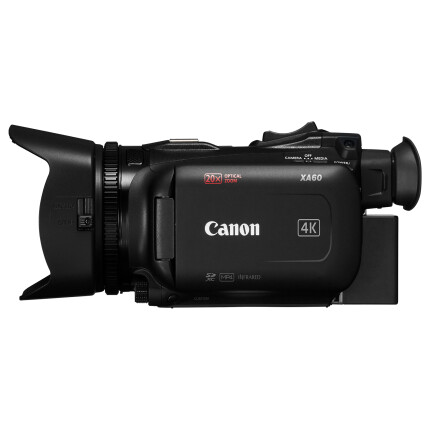

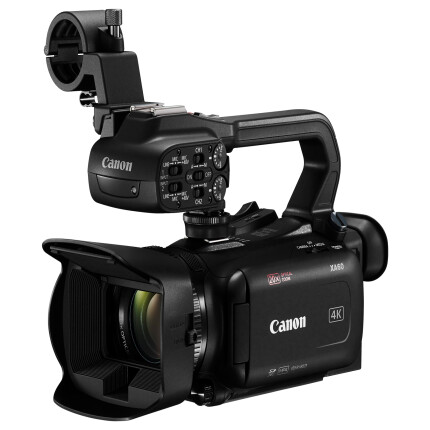

Canon XA60 Professional UHD 4K Camcorder

Be the first to write a review

1/2.3" CMOS Sensor, DIGIC DV 6 Processor
On-Screen Display Time Stamp Recording
Up to UHD 4K30 Video Recording
USB Type-C Output with UVC Support
Record $K in XF-AVC and MP4 Formats
Mini-HDMI Video Output
Integrated 20x Optical Zoom Lens
Infrared, Optical Image Stabilization
Dual SD Relay and Simultaneous Recording
Dual XLR and Mic/Line Audio Input

Screen Size:: 3.5"

Screen Size:: The size of the screen listed by height and width.

View All Attribute Definitions

Compatible Media:: SD/SDHC/SDXC (UHS-I)

Compatible Media:: A storage medium that is compatible with your portable device, in a form that can easily be removed or accessed by a PC such as a type of memory card that is compatible with your camera.

View All Attribute Definitions

Viewfinder Type:: Built-In Electronic (LCD)

Image Sensor Size:: 1/2.3"

Image Sensor Size:: Refers to the actual physical size of the imaging sensor in the camera. A sensor that has the same dimensions as a 35mm frame of film is considered to be "full" frame. Other smaller sensor sizes are described in terms relative to a "full" sized sensor. (e.g. an APS-C 1.5x crop sensor)

View All Attribute Definitions

Image Sensor Type:: 1/2.3"-Type CMOS Sensor

Lens Filter Size:: None

Lens Filter Size:: The size of the filter that fits the lens.

View All Attribute Definitions

Focal Length:: 3.6mm-73.4mm
35mm Equivalent: 29.3mm-627mm

Focal Length:: Focal Length

View All Attribute Definitions

Maximum Aperture:: f/1.8 to f/2.8

Maximum Aperture:: How wide a lens can be opened.

View All Attribute Definitions

OVERVIEW

Shoot high quality 4K UHD video with the compact XA60. The camera delivers outstanding oversampled HD, advanced autofocus, a Canon 20x optical zoom lens, HD livestreaming with UVC1 via a USB-C connection to a PC or Mac and can capture footage for recording or sharing later in either XF-AVC or MP4 formats.

Compact professional 4K UHD camcorder

Capture stunning 4K UHD and Full HD images thanks to a 4K 1/2.3" type CMOS sensor and DIGIC DV6 image processor. Oversampled HD delivers Full HD images from the 4K sensor.

On-Screen Display (OSD) “Time Stamp” Recording

New to XA-Series cameras, the OSD recording embeds date, time, timecode, and other data into your original camera files effectively “time stamping” the information into each frame of video, a requirement for legal and law enforcement videographers.

Sample Image of on camera screen modes, including shutter speed, aperture, recording settings and more

UVC Livestreaming

Stream HD video directly from the camera via UVC1 to a PC or Mac computer.

Screen shot of UVC option to Live Stream from the Canon XA60

Professional audio controls

Two XLR terminals on a detachable handle plus 4-channel linear PCM bring a suite of pro audio options.

4K 20x optical zoom lens

The Canon lens covers a 29.3mm wide angle (35mm equivalent) with a powerful 612mm reach. Digital zoom boosts the 20x optical zoom to 800x magnification. To minimize camera shake, the camera provides Canon’s Dynamic IS 5-axis image stabilization.

Fast, precise focusing with face detection

Adjustable focusing speeds and advanced Hybrid AF system provide fast and precise focusing. Use the ultra-bright high-resolution 3.5-inch LCD display to set focus by touching the AF point on the screen. Face Detection AF and Face Tracking are available while Manual Focus is set via the focus/zoom ring.

Camera Monitor showing how crisp and sharp the auto focus feature is for tracking

XF-AVC and MP4 for flexible recording

Choose from XF-AVC or MP4 recording formats. Record XF-AVC 4K UHD 160Mbps at 30P and Full HD 45Mbps at 60P/60i/30P/24P. For smaller files, record MP4 in 4K 150Mbps at 30P/24P and Full HD 35Mbps or 17Mbps at 60P/30/24P.

Image of Spain buildings with many architectural features

Professional input and output

Output options include simultaneous backup and relay recording via dual SD cards and Infrared mode. Record Slow Motion in Full 5x HD or Fast Motion in 4K/Full HD up to 1200x. Color match with other Canon cameras using the custom picture menu.

Product Reviews

There are no reviews for this product.

Write a review

Specifications

Brand
Canon

Display & Viewfinder
Screen Size:	3.5"
Screen Size: The size of the screen listed by height and width. View All Attribute Definitions
Viewfinder Resolution:	1,770,000 Dot
Display Type:	Articulating Touchscreen LCD
Display Type: The type or brand of the screen. View All Attribute Definitions
Monitor Resolution:	2,760,000 Dot
Monitor Resolution: A measurement of the LCD Monitor's resolution not by width by height, but rather the total amount of dots. View All Attribute Definitions

Detailed Specifications
Compatible Media:	SD/SDHC/SDXC (UHS-I)
Compatible Media: A storage medium that is compatible with your portable device, in a form that can easily be removed or accessed by a PC such as a type of memory card that is compatible with your camera. View All Attribute Definitions

Physical Specifications
Dimensions:	Without Protrusions: 7.2" x 4.3" x 3.3"
Dimensions: The measurements of an object. View All Attribute Definitions
Weight:	Body Only: 1.6lbs With Battery, Handle, and Recording Media: 2.5lbs
Weight: The physical weight of the item without packaging. View All Attribute Definitions

Flash Attributes
Built-in Flash:	No
Built-in Flash: A flash that is embedded or part of the camera. Built-in flashes are found in both DSLR and Point & Shoot cameras. Although practical because of their small size and ease of use, built-in flashes are often ineffective and/or unflattering as a main source of light. View All Attribute Definitions

Interface
Memory Card Slot:	Dual SD Slots

Viewfinder Specifications
Viewfinder Type:	Built-In Electronic (LCD)

Power System
Battery Type:	Canon BP-8 Series
Battery Type: The type of battery for a device. Some cameras use single use alkaline while others use rechargeable lithium batteries. View All Attribute Definitions

Brand
Brand:	Canon

Focusing Control
Focus Modes:	Automatic Manual Focus
Focus Modes: The types of focus modes an item has. View All Attribute Definitions

Camera Attributes
Audio Recording:	MP4: 2-Channel 16-Bit AAC Audio MP4: 4-Channel 16-Bit LPCM Audio
Image Stabilization:	Optical in Integrated Lens Digital
Image Sensor Size:	1/2.3"
Image Sensor Size: Refers to the actual physical size of the imaging sensor in the camera. A sensor that has the same dimensions as a 35mm frame of film is considered to be "full" frame. Other smaller sensor sizes are described in terms relative to a "full" sized sensor. (e.g. an APS-C 1.5x crop sensor) View All Attribute Definitions
Electronic Shutter:	Electronic Global Shutter
Electronic Shutter: Blades or a curtain of some type of cover that controls the time during which light reaches the film or a sensor. View All Attribute Definitions
Image Sensor Type:	1/2.3"-Type CMOS Sensor
White Balance Mode:	2000 to 15,000K
Operating Temperature:	32 to 72°F (0 to 40°C)
Recording File Format (Video):	H.264/MP4/XF-AVC:3840 x 2160 at 23.98p/24.00p/29.97p [150 Mb/s] 1920 x 1080 at 23.98p/24.00p/29.97p/59.94p [17 to 35 Mb/s] 1280 x 720 at 59.94p [8 Mb/s]
Camera Body Weight:	1.6lbs

Lens Specification
Lens Min. Focus Distance:	Wide: 0.4" Entire Zoom Range: 23.6"
Lens Min. Focus Distance: The shortest distance that a lens can focus. View All Attribute Definitions
Lens Filter Size:	None
Lens Filter Size: The size of the filter that fits the lens. View All Attribute Definitions
Focal Length:	3.6mm-73.4mm 35mm Equivalent: 29.3mm-627mm
Focal Length: Focal Length View All Attribute Definitions
Maximum Aperture:	f/1.8 to f/2.8
Maximum Aperture: How wide a lens can be opened. View All Attribute Definitions
Focus Type:	Auto Manual Focus
Focus Type: The type of focus of the lens from full manual control to auto focus. View All Attribute Definitions
