Canon EOS R5 C Digital Cinema Camera (Body Only)

Be the first to write a review

Supports 8K/60P Internal RAW or Cinema RAW Light Recording
HDMI 8K RAW Output to Compatible Recorders
8K HDR Recording (PQ/HLG)
Internal Cooling Fan Enables Non-stop 8K/60P Recording
Full-featured 13 Assignable Buttons
8K Sensor and DIGIC X Processor with 4K and 2K Oversampling
XF-AVC and MP4 Codecs for 10-bit 4:2:2 Video
Up to 4K 120P Slow and Fast Motion Recording Mode in 4:2:2 10-bit
Simultaneously Records Different Formats
Simultaneous Audio Recording Enabled with HFR
Canon Log 3 Expands Expressive Possibilities
Enhanced Image Stabilization
Dual Pixel CMOS AF with iTR AF X

Screen Size:: 3.2-inch

Screen Size:: The size of the screen listed by height and width.

View All Attribute Definitions

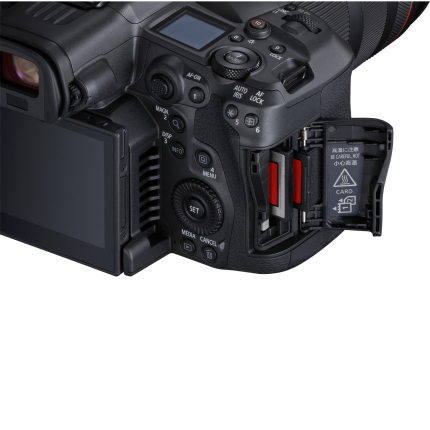

Compatible Media:: CFexpress card
• Type B: Card slot
SD card
• SD card speed class-compatible.
• Compatible with UHS-II
• Eye-Fi cards and Multimedia cards (MMC) are not supported

Compatible Media:: A storage medium that is compatible with your portable device, in a form that can easily be removed or accessed by a PC such as a type of memory card that is compatible with your camera.

View All Attribute Definitions

Megapixels:: Approx. 45.0 megapixels

Megapixels:: A megapixel is one million pixels. It is commonly used to describe the resolution of digital cameras. For example, a 7.2 megapixel camera is capable of capturing roughly 7,200,000 pixels. The higher the megapixel number, the more detail the camera can capture. Therefore, the megapixel count is a significant specification to look for when buying a digital camera.

View All Attribute Definitions

Viewfinder Type:: OLED color electronic viewfinder

Image Sensor Size:: Approx. 36.0 x 24.0 mm

Image Sensor Size:: Refers to the actual physical size of the imaging sensor in the camera. A sensor that has the same dimensions as a 35mm frame of film is considered to be "full" frame. Other smaller sensor sizes are described in terms relative to a "full" sized sensor. (e.g. an APS-C 1.5x crop sensor)

View All Attribute Definitions

Image Sensor Type:: CMOS sensor (compatible with Dual Pixel CMOS AF)

Lens Mount:: Canon RF mount

Lens Mount:: The type of lens mount.

View All Attribute Definitions

Mount Type:: Canon RF

Mount Type:: This is the mount type for the lens to attach to the camera body.

View All Attribute Definitions

OVERVIEW

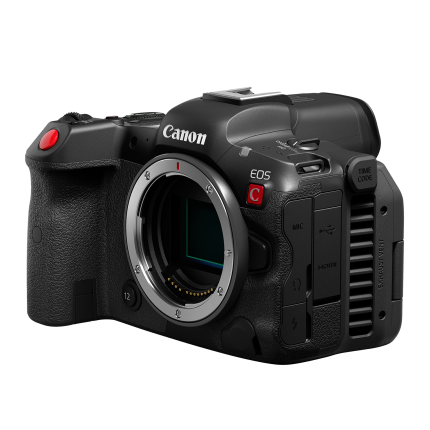

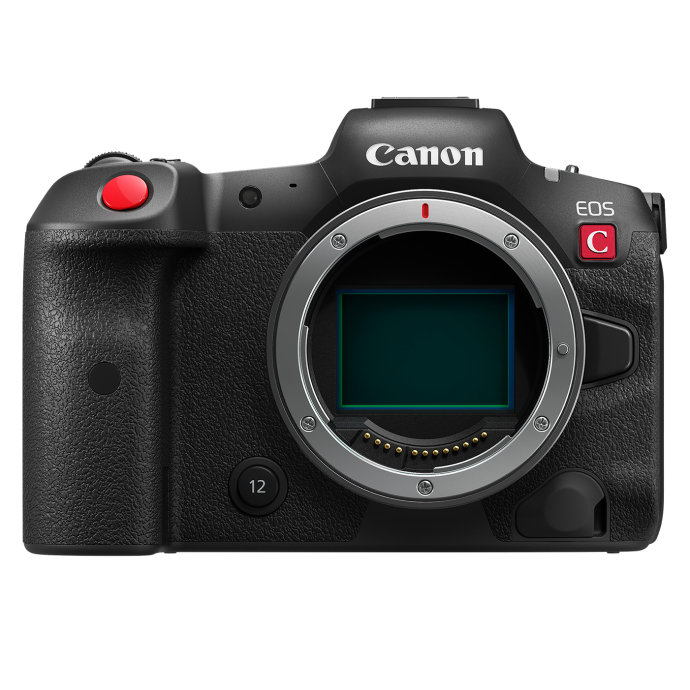

EOS R5 C Full-frame, 8K Cinema EOS System Camera

Compact and lightweight, the EOS R5 C is a true hybrid camera, boasting many of the video formats and features from the Cinema EOS lineup as well as many of the still-imaging capabilities of the EOS R5 camera in a beautifully designed body.

The EOS R5 C is a complete package that offers filmmakers, multimedia journalists, and advanced amateurs a cost-effective 8K, 4K, and FHD video camera to help unlock their creative potential.

Shares Common Features & Technology with the EOS R5 Camera

Canon’s 45 Megapixel full-frame, CMOS imaging sensor is at the heart of the EOS R5 C camera’s superb image quality, which also leads the way for impressive 8K/60P RAW cinematic video shooting.

Focus and speed are paramount in the EOS R5 C camera, providing impressive still-image continuous capture at speeds of up to 20 frames per second, and with Dual Pixel CMOS AF II capability, to track split second movements of even the most elusive subjects. With 1,053 Automatic AF zones, it is easy to photograph people with the use of Eye, Face and Head Detection AF, or intuitively track the whole body, face or eye of cats, dogs, or birds with Animal Detection AF. For those with the need for speed, Canon has also included still-image vehicle subject detection to assist with accurate tracking of cars and motorcycles. Connectivity like 5GHz and 2.4GHz Wi-Fi® and Bluetooth®, is also included for the transfer of still images.

Video control for the dedicated video professional

As soon as the EOS R5 C’s main switch is moved to the “video” position, the familiar Cinema EOS menu system and interface take over. Expected high-level video features such as waveform monitors, video codec options, and extensive audio control become available — greatly expanding the EOS R5 C’s video potential for the experienced camera operator or video content creator. During “photo” operation, menus are nearly the same as on the EOS R5 camera.

Supports 8K/60P Internal RAW Recording

The 8K sensor and DIGIC X processor produce high-quality video at up to 8K/60P. Use of the Cinema RAW Light format with its high-efficiency mode enables internal card recording without an external recorder.

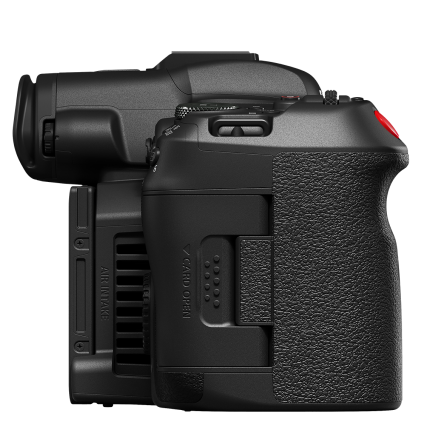

Internal Cooling Fan Enables Non-stop 8K/60P Recording

The EOS R5 C camera features a cooling fan built into the body, forcing out the heat from inside. This enables continuous and virtually limitless shooting of high-definition 8K/60P video without interruption.

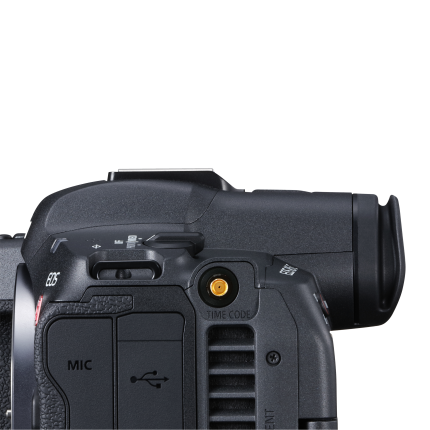

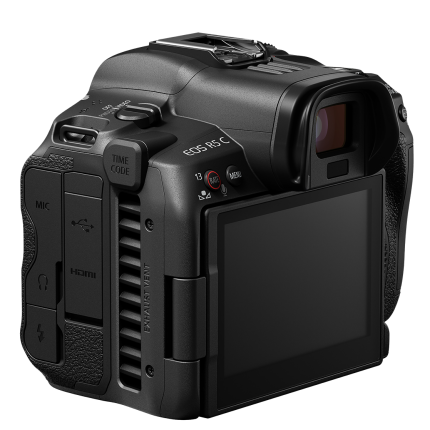

Expanded Interface for Professional Needs

The EOS R5 C camera provides a Timecode input/output terminal for easy synchronization when shooting with multiple cameras and other interfaces. A cable protector is also included as standard to prevent cable disconnection or damage to the terminal if strong force is applied when connecting interface or HDMI cables.

Canon’s Multi-function shoe with digital audio interface supports the optional TASCAM CA-XLR2d-C professional audio XLR microphone adapter for up to 4-channel audio. This optional accessory adds two full-sized XLR terminals with phantom power and shotgun mic mount, enabling digital 4-channel and 24-bit audio recording to meet professional video production needs.

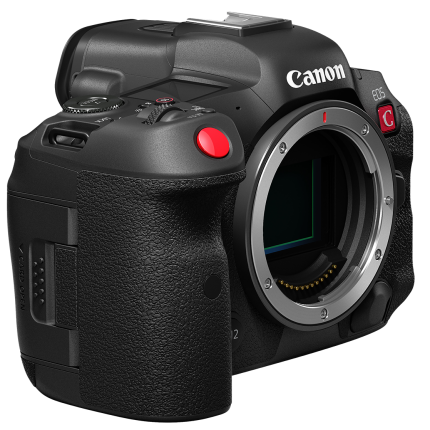

Carries on the Ergonomic EOS Design

The EOS R5 C camera’s body design is incredibly compact and lightweight. When paired with a Canon RF lens (or EF lens using the Mount Adapter EF-EOS R), it offers outstanding performance that fits easily and comfortably in your hand, making handheld shooting a breeze whether shooting video or still images. Its Electronic Viewfinder is optically extended, for eye-level viewing similar to the conventional EOS R5 camera, and it uses the same ergonomic grip design.

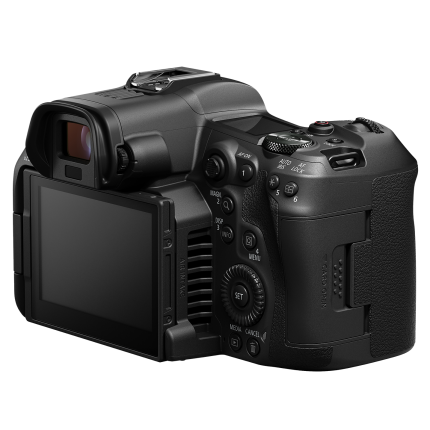

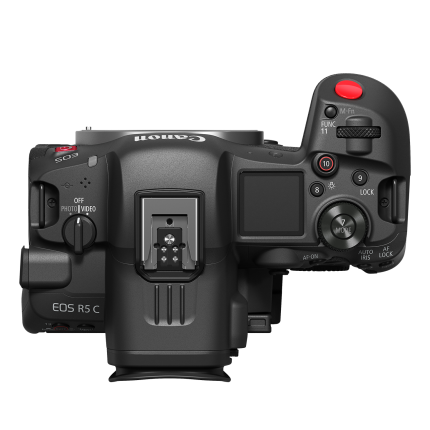

Full-featured 13 Assignable Buttons

The EOS R5 C camera is designed with operational flexibility in mind, conforming to each individual professional workflow, including 13 marked, assignable buttons that allow for user-friendly customized operation.

8K Sensor and DIGIC X Processor

The EOS R5 C camera is the first Cinema EOS System Camera to provide internal 8K (8192x4320) 60P RAW recording. 8K video offers outstanding definition and realism with 16 times the resolution of full HD video, enabling unprecedented capabilities in video expression and highly flexible workflows, such as 4K cropping from 8K footage. The EOS R5 C camera can also record 8K video in the highly versatile MP4 format. Lighter, smaller proxy video files can also be recorded while shooting 8K. This makes for an efficient workflow during editing, previewing, and other tasks.

Internal Cinema RAW Light up to 8K/60P

The camera supports recording of two 8K formats, both Cinema RAW Light, which is amazing for post-production grading and archiving, or MP4, which is optimized for faster online use. Formats can be selected according to the user’s needs. In addition, 5.9K in Super 35mm mode and 2.9K in Super 16mm mode are also available for internal recording to CFexpress cards.

Cinema RAW Light can be recorded internally with data optimized for HDR video rendering. Cinema RAW Light video files have been optimized for better efficiency to achieve 12-bit recording in all frame rates.

Thanks to three newly-developed Cinema RAW Light modes (High quality RAW HQ, standard quality RAW ST, and Light recording RAW LT), users can select the RAW video mode according to their shooting needs.

Cinema RAW Light
Sensor	High quality	Standard quality	Light recording
mode	RAW HQ	RAW ST	RAW LT
	12bit RAW	12bit RAW	12bit RAW
FF	---	8K 30P / 2.0 Gbps	8K 60P / 2.6 Gbps
S35	5.9K 30P / 2.12 Gbps	5.9K 60P / 2.1 Gbps	5.9K 60P / 1.4 Gbps
S16	2.9K / 60P 1.07 Gbps	2.9K / 60P 529 Mbps	2.9K / 60P 344 Mbps

Supports 8K HDR Recording (HLG/PQ)

The combination of ultra-high-definition 8K recording and HDR lets users shoot more realistic and lifelike video. The EOS R5 C camera supports HDR recording in Hybrid Log Gamma (HLG) and Perceptual Quantization (PQ) formats. This helps ensure full color rendition and wide latitude with a great range from black to pure white – outstanding for the delivery of live streams, broadcasts and post-production projects.

Wide Variety of Recording Formats

The EOS R5 C camera offers users a wide variety of recording formats to choose from to fit individual workflows and output needs. Along with Cinema RAW Light, which provides light data sizes for RAW recording, the EOS R5 C camera supports MXF-based XF-AVC, which conforms to broadcasting standards, and highly versatile MP4.

Cinema RAW Light

Three newly-developed modes: High quality RAW HQ, Standard quality RAW ST, and Light recording RAW LT
12-bit sampling depth

XF-AVC

MXF compliant
4K 60P Intra & Long GOP
H.264
Interlace recording

MP4

High versatility
HEVC & H.264

Format	Sampling	Codec	Intra/LGOP	Resolution	Frame rate	Bit rate
Cinema RAW Light	12bit		(Intra)	8192 x 4320	59.94p/50.00p/29.97p/25.00p/24.00p/23.98p	2.6G bps
				5952 x 3140	59.94p/50.00p/29.97p/25.00p/24.00p/23.98p	2.1G/1.4G bps
				2976 x 1570	59.94p/50.00p/29.97p/25.00p/24.00p/23.98p	1080M/529M/344M bps
XF-AVC	422	H.264	Intra	4096 x 2160	59.94p/50.00p/29.97p/25.00p/24.00p/23.98p	810M/410M bps
	10bit		(All-I)	3840 x 2160
				2048 x 1080	59.94p/50.00p/29.97p/25.00p/24.00p/23.98p	310M/160M bps
				1920 x 1080	59.94p/50.00p/29.97p/25.00p/24.00p/23.98p	310M/160M bps
					59.94i/50.00i
			LongGOP	4096 x 2160	59.94p/50.00p/29.97p/25.00p/24.00p/23.98p	260M/160M bps
				3840 x 2160
				2048 x 1080	59.94p/50.00p/29.97p/25.00p/24.00p/23.98p	50M bps
				1920 x 1080	59.94p/50.00p/29.97p/25.00p/24.00p/23.98p
					59.94i/50.00i
				1280 x 720	59.94p/50.00p	24M bps
	420			2048 x 1080	59.94p/50.00p/29.97p/25.00p/24.00p/23.98p	35M/24M bps
	8bit			1920 x 1080	59.94p/50.00p/29.97p/25.00p/24.00p/23.98p
					59.94i/50.00i
				1280 x 720	59.94p/50.00p	17M bps
MP4	422	HEVC	LongGOP	8192 x 4320	29.97p/25.00p/24.00p/23.98p	540M bps
	10bit			7680 x 4320
				4096 x 2160	59.94p/50.00p/29.97p/25.00p/24.00p/23.98p	225M/135M bps
				3840 x 2160
				2048 x 1080	59.94p/50.00p/29.97p/25.00p/24.00p/23.98p	50M/12M bps
				1920 x 1080
				1280 x 720
	420			8192 x 4320	29.97p/25.00p/24.00p/23.98p	400M bps
	10bit			7680 x 4320
				4096 x 2160	59.94p/50.00p/29.97p/25.00p/24.00p/23.98p	170M/100M bps
				3840 x 2160
				2048 x 1080	59.94p/50.00p/29.97p/25.00p/24.00p/23.98p	35M/9M bps
				1920 x 1080
				1280 x 720
	420	H.264		4096 x 2160	59.94p/50.00p/29.97p/25.00p/24.00p/23.98p	150M/35M/8M bps
	8bit			3840 x 2160
				2048 x 1080	59.94p/50.00p/29.97p/25.00p/24.00p/23.98p	9M/6M bps
				1920 x 1080
				1280 x 720

Simultaneously Record Different Formats

The EOS R5 C camera is capable of recording two independent video files simultaneously, such as Cinema RAW Light and MP4 at various resolutions including 4K and HD, as well as lightweight proxy files for various professional workflows.

XF-AVC and MP4 Codecs for 10-bit 4:2:2 Video

In addition to Cinema RAW Light, the EOS R5 C camera offers XF-AVC and MP4 codecs to provide familiar and trusted codecs for easy ingestion and post-production workflows across cinema, broadcast, and many professional markets and applications. XF-AVC offers robust 10-bit 4:2:2 files in a .MXF wrapper for simple compatibility with non-linear editing systems (NLEs) and existing workflows.

4K and 2K Oversampling

The EOS R5 C camera reads out signals for all effective pixels from its full-frame 8K sensor, enabling 4:2:2 10-bit high-definition recording through oversampling during 4K and 2K video recording. A high-definition debayer algorithm has been included and the 4K generated from the abundant RGB data of the 8K sensor enables more refined imaging capabilities with less incidence of moiré, false colors, “jaggies” and noise.

HDMI 8K RAW Output to Compatible Recorders

The EOS R5 C camera supports RAW output via HDMI and ProRes RAW recording with compatible external recorders such as Atomos devices. By connecting the EOS R5 C camera with a supported external recorder, users can shoot in Apple ProRes RAW at up to 8K 30P. Proxy data can also be simultaneously recorded to an SD card in-camera, providing efficient post-production operations.

Up to 4K 120P Slow and Fast Motion Recording Mode in 4:2:2 10-bit

The EOS R5 C camera can record High Frame Rate (HFR) movies at up to 120P at 4K resolution (4096x2160/3840x2160) in 4:2:2 10-bit without cropping the sensor.

Amazing for shooting scenes full of fast-paced action, the EOS R5 C camera’s fast and intuitive autofocus remains enabled even during HFR recording, making it ideal when shooting from a gimbal or drone, delivering outstanding focus accuracy at HFR or at common frame rates.

Simultaneous Audio Recording Enabled with HFR

Unlike some other cameras where audio is not recorded during HFR shooting, the EOS R5 C camera can record .WAV audio as a separate file from video, virtually eliminating the need for separate audio recording and delivering HFR video and audio files in one convenient device when shooting slow motion or fast motion video.

Canon Log 3 Expands Expressive Possibilities

The EOS R5 C camera features Canon Log 3, which is found in many Canon cameras and works with multiple Canon EOS and Cinema EOS cameras. The wide dynamic range can be used for a wider range of grading after shooting. Canon Log 3 is a gamma that is designed for simple grading, such as tightening dark areas and adjusting tones. It carries on Canon Log’s ease of use with less noticeable noise. It can also be used when shooting with other Cinema EOS system cameras such as the EOS C300 Mark III and EOS C70 cameras.

Enhanced Image Stabilization

Enhanced image stabilization is achieved through coordinated control when Canon’s RF lenses with optical IS are combined with the EOS R5 C camera’s electronic IS when shooting XF-AVC or MP4 formats. With an RF lens that has optical IS and the electronic IS in the EOS R5 C camera, coordinated control helps achieve the optimum hand-shake correction effects. This helps achieve better anti-vibration performance than with conventional IS-equipped EF lenses (using optional Mount Adapter EF-EOS R) and electronic IS together.

Canon VR with RF5.2mm F2.8 L Dual Fisheye Lens Support and Workflow

The EOS R5 C camera is an excellent camera pairing with Canon’s RF5.2mm F2.8 L Dual Fisheye Lens to achieve stereoscopic 3D 180° VR video (viewing in 3D requires the use of a compatible Head Mount Display). A plug-in for Adobe® Premiere Pro® and Canon’s EOS VR Utility are available to streamline the workflow from shooting to editing.

Dual Pixel CMOS AF with iTR AF X

Canon’s Dual Pixel CMOS AF technology uses every pixel on the imaging sensor to detect focus, and also to capture actual image information achieving both high precision focusing and high image quality.

With most Canon RF and EF lenses, AF for video can be carried out over approximately 80% of the vertical and horizontal area of the screen. Touch AF allows positioning an AF point by simply touching the LCD screen, in addition to quick manual positioning with the 8-way Multi-controller on the rear of the camera.

In addition, the camera features Eye AF/Head Detection AF, developed with the use of deep learning technology to improve subject tracking. It also provides human detection (eyes/face/head), allowing it to track subjects accurately even when AF control is not available.

Users can track focusing as desired depending on their subject or shooting situation. A wide variety of AF modes enable autofocus shooting that flexibly responds to the subject’s movement. Users can leave focusing to the camera and concentrate on their camera work.

Product Reviews

There are no reviews for this product.

Write a review

Specifications

Brand
Canon

Display & Viewfinder
Screen Size:	3.2-inch
Screen Size: The size of the screen listed by height and width. View All Attribute Definitions
Diopter Adjustment:	Approx. -4.0 to + 2.0 m^-1 (dpt)
Viewfinder Resolution:	Approx. 5.76 million dots resolution

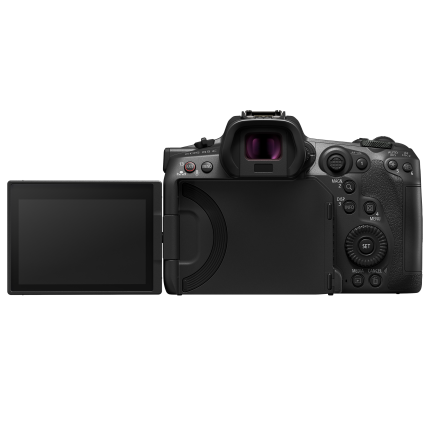

Display Type:	TFT color, liquid-crystal monitor
Display Type: The type or brand of the screen. View All Attribute Definitions
Monitor Resolution:	Approx. 2.1 million dots
Monitor Resolution: A measurement of the LCD Monitor's resolution not by width by height, but rather the total amount of dots. View All Attribute Definitions

Detailed Specifications
Compatible Media:	CFexpress card • Type B: Card slot SD card • SD card speed class-compatible. • Compatible with UHS-II • Eye-Fi cards and Multimedia cards (MMC) are not supported
Compatible Media: A storage medium that is compatible with your portable device, in a form that can easily be removed or accessed by a PC such as a type of memory card that is compatible with your camera. View All Attribute Definitions
Megapixels:	Approx. 45.0 megapixels
Megapixels: A megapixel is one million pixels. It is commonly used to describe the resolution of digital cameras. For example, a 7.2 megapixel camera is capable of capturing roughly 7,200,000 pixels. The higher the megapixel number, the more detail the camera can capture. Therefore, the megapixel count is a significant specification to look for when buying a digital camera. View All Attribute Definitions

Physical Specifications
Dimensions:	Approx. 5.6 x 4.0 x 4.4 in. / 142 x 101 x 111mm • Based on CIPA standards.
Dimensions: The measurements of an object. View All Attribute Definitions

Flash Attributes
Built-in Flash:	No
Built-in Flash: A flash that is embedded or part of the camera. Built-in flashes are found in both DSLR and Point & Shoot cameras. Although practical because of their small size and ease of use, built-in flashes are often ineffective and/or unflattering as a main source of light. View All Attribute Definitions
External Flash Connection:	Canon Hot Shoe
External Flash Connection: An off camera flash used for more creative lighting. View All Attribute Definitions

Interface
Memory Card Slot:	2 Slot CFexpress Type B SD card
Connectivity:	Wi-Fi® IEEE 802.11a/ac/b/g/n Bluetooth® Version 5.0 USB Type-C HDMI micro OUT terminal Type D

Viewfinder Specifications
Viewfinder Type:	OLED color electronic viewfinder

Power System
Battery Type:	LP-E6NH/LP-E6N/LP-E6
Battery Type: The type of battery for a device. Some cameras use single use alkaline while others use rechargeable lithium batteries. View All Attribute Definitions

Brand
Brand:	Canon

Camera Attributes
Recording File Format (Image):	JPEG, HEIF, RAW
Light Metering Modes:	Real-time metering with image sensor (384 zones [24x16 zone metering]) (1) Evaluative metering (AF point-linked) (2) Partial metering (approx. 6.1% of the area at the center of the screen) (3) Spot metering (approx. 3.1% of the area at the center of the screen) (4) Center-weighted average metering
Extended ISO:	L: ISO 50, H: 102400
Image Stabilization:	Yes
Image Sensor Size:	Approx. 36.0 x 24.0 mm
Image Sensor Size: Refers to the actual physical size of the imaging sensor in the camera. A sensor that has the same dimensions as a 35mm frame of film is considered to be "full" frame. Other smaller sensor sizes are described in terms relative to a "full" sized sensor. (e.g. an APS-C 1.5x crop sensor) View All Attribute Definitions
Electronic Shutter:	1/8000-0.5 sec.
Electronic Shutter: Blades or a curtain of some type of cover that controls the time during which light reaches the film or a sensor. View All Attribute Definitions
Autofocus Points:	AF area: Horizontal: Approx. 100% x Vertical: Approx. 100% Stills: Max. 1053 zones (39 x 27) Movies: Max. 819 zones (39 x21)
Aspect Ratio:	3:2 (Horizontal: Vertical)
Image Sensor Type:	CMOS sensor (compatible with Dual Pixel CMOS AF)
White Balance Mode:	(1) Auto (Ambience priority/White priority) (2) Daylight (3) Shade (4) Cloudy (5) Tungsten light (6) White fluorescent light (7) Flash (8) Custom (Custom WB) (9) Color temperature
Continuous Shooting:	Approx. 6.8 to 12 shots/sec. depending on Shutter Type
Camera Format:	Mirrorless Cinema Camera
Operating Temperature:	32–104°F / 0–+40°C
Recording File Format (Video):	Raw, XF-AVC, MP4
ISO Sensitivity:	ISO 100–51200
Exposure Modes:	(1) Scene Intelligent Auto (2) Flexible-priority AE (Fv) (3) Program AE (P) (4) Shutter-priority AE (Safety shift possible) (Tv) (5) Aperture-priority AE (Safety shift possible) (Av) (6) Manual exposure (M) (7) Bulb (8) Custom shooting mode C1, C2, C3
Exposure Modes: The various programmed, automatic, semi-automatic, and/or manual shooting modes which a camera has available for use. (e.g. Program, Shutter Priority, Aperture Priority, and Programmed Automatic) View All Attribute Definitions
Lens Mount:	Canon RF mount
Lens Mount: The type of lens mount. View All Attribute Definitions
Camera Body Weight:	Approx. 1.7 lbs. / 770g (including battery, CFexpress card; without body cap) Approx. 1.5 lbs. / 680g (body only; without battery, card or body cap)
