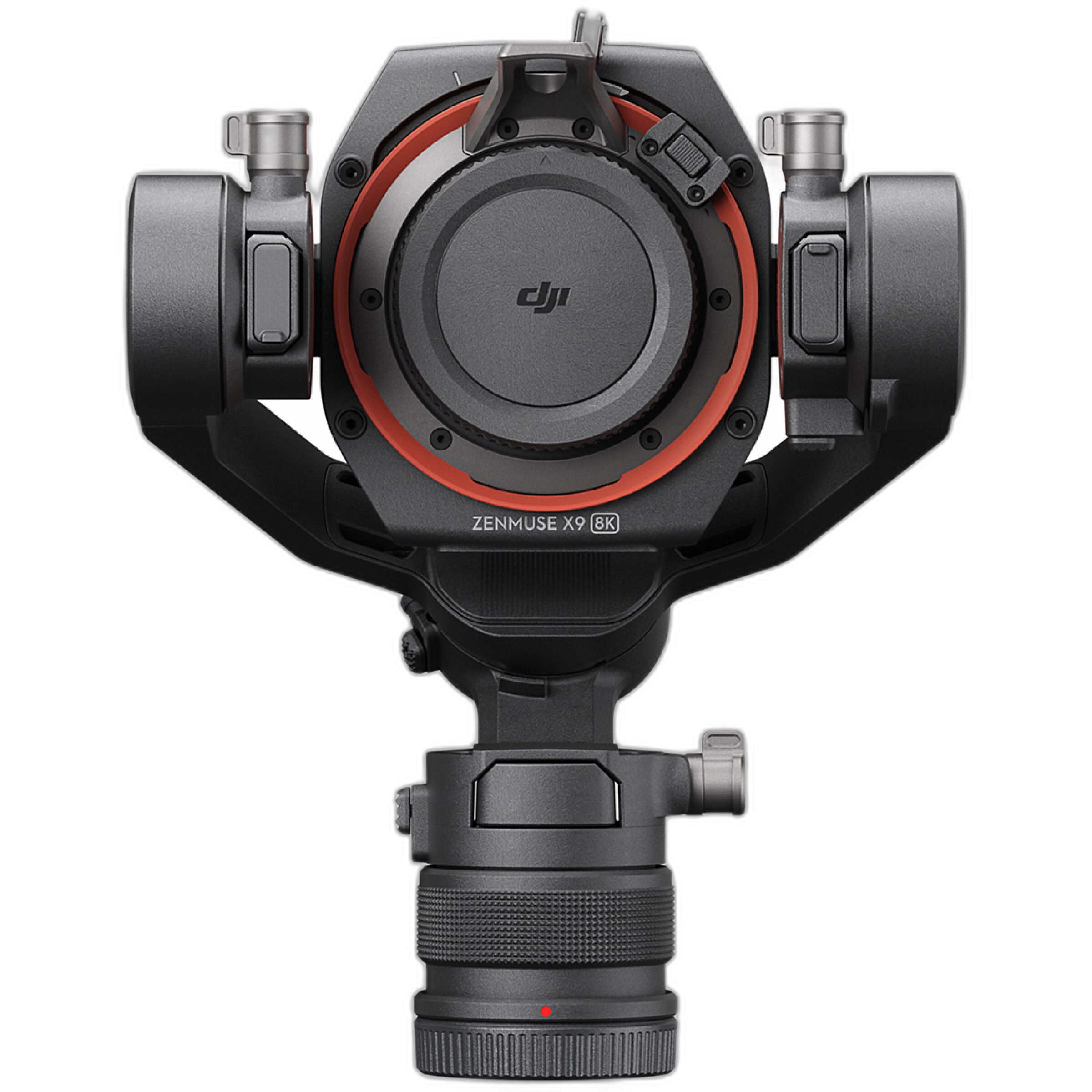

DJI Zenmuse X9-8K Gimbal Camera
- Zenmuse X9-8K Camera
- Interchangeable DL Lens Mount Included
- Requires Ronin 4D Main Body & 8K License
- Up to 8K30 ProRes 422 HQ with License
- Built-In ND.03 to ND2.7 Filters
- 800/5000 Dual Native ISO
- Lens Mount & Body Caps, Case Included
- Compatible with Ronin 4D Ecosystem
The Zenmuse X9-8K Gimbal Camera from DJI provides a way for existing Ronin 4D-6K owners to upgrade their capture with 8K recording options and an ACES-certified workflow. Mount the X9-8K on your main 4D body, add an 8K raw license, and update it to the latest firmware to access 17:9 capture rates up to 8K60 video in Apple ProRes Raw and 8K30 in ProRes 422 HQ. The resulting 4D X9-8K rig offers the higher imaging standards required for visual effects, cine-style capture, and broadcasting while reducing your setup time with its all-in-one combination design.
Full-frame 8K/60fps & 4K/120fps
Zenmuse X9 supports internal recording of Apple ProRes RAW, ProRes 4444 XQ, ProRes 422 HQ, ProRes 422 LT, and H.264 video, and up to 8K/60fps and 4K/120fps full-frame video recording. It also supports the ACES workflow.
Dual-native ISO 800/4000
X9-8K defaults to EI 320/1600. With Dynamic Range Expansion on, X9-8K can support EI 800/4000, while X9-6K supports EI 800/5000, allowing it to capture footage with exquisite detail and minimal noise.
Built-In 9-Stop Physical ND Filters
X9 has 9-stop built-in physical ND filters (ND 2 to ND 512, or ND 0.3 to ND 2.7) that can be quickly and easily switched thanks to a motorized internal system.
DL/E/L/PL/M Interchangeable Lens Mount
X9 supports DJI's proprietary DL mount, as well as Leica L, Leica M, Sony E, ARRI PL, and more. Lenses compatible with these mounts can also be used with X9.
Autofocus on Manual Lenses
With the LiDAR focusing system and focus motor, autofocus is available even on manual lenses. In Automated Manual Focus mode, the focus wheel will rotate in sync as the focus point changes, but cinematographers can take manual control at any point.
4-Axis Active Stabilization on Par with a Dolly
The Z-Axis effectively eliminates vertical camera shake and works with visual sensors and ActiveTrack Pro to let you create smooth, stable footage effortlessly.
Up to 20,000-foot Wireless Transmission and Control Range
O3 Pro Video Transmission Technology adds DFS frequency bands and enables 1080p/60fps video transmission. It supports one transmitter with multiple receivers and can remotely control gimbal, focusing, and camera settings.
In the Box
- DJI Zenmuse X9-8K Gimbal Camera
- Zenmuse X9-8K Gimbal Camera
- DL Lens Mount
- X9 Gimbal Base Cap
- DL Mount Body Cap
- Case
Brand
camera attributes
| Lens Mount | DJI DL |
| Image Sensor Type | Full-Frame CMOS |
| White Balance Mode | 2000 to 11,000K Presets: AWB, Manual |
| Image Stabilization | Digital, 4-Axis |
| Audio Recording | 2-Channel 24-Bit 48 kHz LPCM Audio |
| Operating Temperature | -4 to 140°F / -20 to 60°C |
lens specification
| Focus Type | Auto and Manual Focus |
| Mount Type | 2 x 3/8"-16 Female (Bottom) 5 x 1/4"-20 Female (Bottom) |
power system
| Battery Type | DJI TB50 |
detailed specifications
| Megapixels | Effective: 44.7 Megapixel |
| Compatible Media | CFexpress Type B (Supports Optional DJI ProSSD Module) |
focusing control
| Focus Modes | Auto and Manual Focus |
display & viewfinder
| Screen Size | 5.5" |
| Display Type | Articulating Touchscreen LCD |
interface
| Memory Card Slot | Single Slot: CFexpress Type B (Supports Optional DJI ProSSD Module) |
brand
| Brand | DJI |
