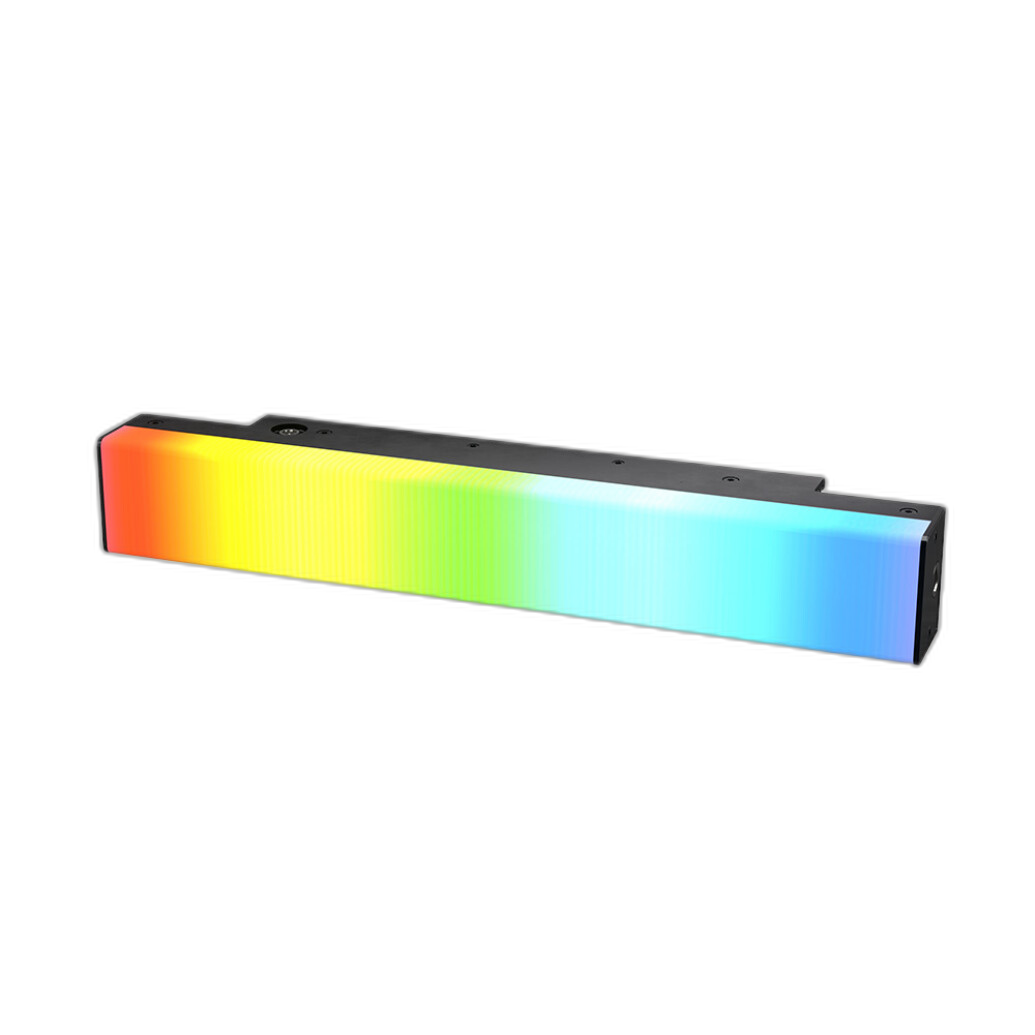

The Infinibar Pixel Bar is Aputure's first RGBWW full-color LED pixel bar. Featuring 24 pixels, intuitive mounting and connecting options with an infinite blending design, an integrated battery, and advanced connectivity methods, the Infinibar PB3 is a 1 foot pixel bar that excels in building and creating unique, colorful designs that bring scenes to life in new and exciting ways.
The Infinibar's most unique feature is the ability to link mulitple 1ft, 2ft, or 4ft Infinibars together using 10 differently-shaped connectors to design creative shapes and effects. Users can operate multiple Infinibars using one power supply when linked by the power-sharing connectors or using their internal batteries for greater versatility. The pixel bar's infinite blending design also eliminates visible gaps between fixtures to create seamless pixelated effects using the PB3's 24 RGB pixels.
Featuring advanced wireless connectivity, the Infinibar PB3's 24 pixels can be grouped and controlled via Sidus Link, LumenRadio CRMx, or through wired DMX using Aputure's USB-C to DMX adapter. It also incorporates cirtical color controls (including advanced HSI with white-point adjustability, RGB, and xy) for full creative freedom. Toggle between 9 built-in System FX and 7 built-in Pixel FX or save up to 20 Custom FX in the Sidus Link app for easy acecss to different light modes.
The Infinibar PB3's proprietary RGBWW chipset produces stunning color quality throughout its wide CCT range of 2k-10k with full green-magenta adjustment, and can reproduct >90% of colors within the Rec 2020 Color Space. Matching Aputure's high standard for color, the Infinibar PB3 also produces accurte skin tones, measuring scores of CRI: 96+, TLCI: 98+ SSI (D56): 74, SSI (Tungsten): 85.
With its lightweight yet durable aluminum housing, the Infinibar PB3 provides ultimate flexibility across all shooting environments. Whether linked together or used independently, the Infinibar's built-in magnets, Infinibar Rail and Baby Pin Clamp System, and two 1/4"-20 threads allow the PB3 to be mounted with ease. With its built-in 14.8Wh Lithium battery, the Infinibar PB3 can operate at its 6.5W max output for 120 minutes, making it a versatily and compact fixture for your lighting toolkit.
Weight | Infinibar: 1.32lbs |
Dimensions | Infinibar: 12.0" x 1.8" x 21.7"<br>Infinibar and Spacer: 12.0" x 1.8" x 2.1"<br>AC Power Supply: 4.7" x 2.1" x 1.3"<br>Clamp: 4.8" x 2.2" x 1.6"<br>Case: 21.3" x 5.1" x 4.9"</br> |
Brand | Aputure |
Maximum Wattages | 6.5W |
Color Temperature | 2,000K –10,000K |
Dimming | 0-100% at 0.1% increments |
Battery Capacity (mAh) | 7.4V, 2000mAh, 14.8Wh |
Operating Voltage | 24V, 0.5A |
Mount Type | INFINIBAR Rail |
Control Methods | Sidus Link App<br>DMX/RDM via USB-C<br>LumenRadio CRMX</br> |
CRI | 96+ |
Battery Runtime | Approx. 120 Mins @ Max Output |
