Atomos Shogun Inferno 7 4K HDMI/Quad 3G-SDI/12G-SDI Recording Monitor

Atomos
Product #:
AVR2013
Manufacturer #:
ATOMSHGIN2
Atomos Shogun Inferno 7 4K HDMI/Quad 3G-SDI/12G-SDI Recording Monitor

Be the first to write a review

  • Atomos Shogun Inferno 7-inch Recording Monitor
  • 1920×1200 touchscreen display
  • Brightness of 1500 cd/m²
  • 10-Bit FRC monitor processing
  • 4K HDMI and 12G-SDI I/O ports
  • HDR mode with 10-stop dynamic range
  • Rec. 709 monitoring
  • UHD 4K recording at 60p
  • 10-bit ProRes and DNxHR encoding
  • 2.5-inch SSD and HDD support
  • Dual Sony L-Series battery slots
Screen Size:
7.1" (18 cm)
Screen Size:
The size of the screen listed by height and width.
View All Attribute Definitions
Compatible Media:
4K: 2.5" SSD; HD High Frame Rate (50/60/120p): 2.5" SSD, 2.5" HDD (7,200 rpm and up) for 1080p 50/60; HD (30p and less): 2.5" SSD, 2.5" HDD (5,400 rpm and up)
Compatible Media:
A storage medium that is compatible with your portable device, in a form that can easily be removed or accessed by a PC such as a type of memory card that is compatible with your camera.
View All Attribute Definitions
Color:
Black
Color:
The color of the item.
View All Attribute Definitions
Our Price: $999.00
Shop used from $399.95

Earn 1998 U-REWARDS Loyalty Points

Discontinued

Sorry, this item is currently unavailable

No sales tax outside of New Jersey

Free Shipping (Continental US Only)

Free Shipping

We offer Free Shipping (7-10 Day delivery) for this item when ordered through our Web Site.

Free shipping is for the 48 Contiguous States only (PO Boxes, FPO/APO, Hawaii, Puerto Rico, Alaska, and Guam excluded).

Overview

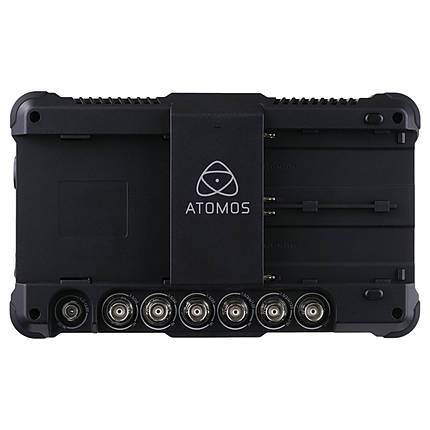

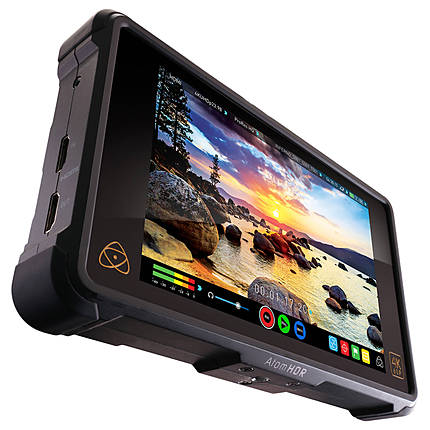

The Atomos Shogun Inferno 7-inch Recording Monitor allows you to review the captured video on-location. Its IPS capacitive touchscreen offer a resolution of 1920×1200 dpi and 1500 cd/m² of brightness. The 10-bit FRC processing and AtomHDR display technology provide brightness limit of 10 stops, which ensures accurate monitoring of log gamma footage without any flat and washed out images. With the built-in presets, you can translate log formats prevalent in the industry such as Canon, Panasonic, ARRI, and more. Along with the HDR monitoring, the Atomos Shogun Inferno has a High Bright mode for standard Rec. 709 monitoring. The monitor has HDMI 2.0 and 12G-SDI inputs to support 4K output signals at 60 fps. Its built-in Apple ProRes and Avid DNxHR codecs offer 10-bit video recording to 2.5-inch SSDs. The monitor can be remotely operated thanks to its LANC slave configuration support as well as HDMI and SDI trigger. This monitor has an ABS polycarbonate body with a built-in protective armor having silicone-covered corners and chamfered edges. The monitor runs on Sony-L series batteries that can be inserted into its dual power slots for an uninterrupted operation.

Product Reviews

There are no reviews for this product.

Write a review

Specifications

Brand
Atomos
Display & Viewfinder
Screen Size: 7.1" (18 cm)
Screen Size:
The size of the screen listed by height and width.

View All Attribute Definitions
Display Type: IPS capacitive touchscreen
Display Type:
The type or brand of the screen.

View All Attribute Definitions
Detailed Specifications
Power Requirements: 6.2 to 16.8 VDC (battery or DC power input)
Power Requirements:
This is the battery or adapter necessary to power a device.

View All Attribute Definitions
Material: ABS polycarbonate
Material:
The substance that something is made out of.

View All Attribute Definitions
Max. Power Consumption: 10 to 24 W
Max. Power Consumption:
Maximum power consumption that a scanner uses.

View All Attribute Definitions
Battery Life: 5200 mAh: up to 1.5 hours (monitor and record 4K); 7800 mAh: up to 2.2 hours (monitor and record 4K)
Battery Life:
The amount of time a battery stays charged.

View All Attribute Definitions
Compatible Media: 4K: 2.5" SSD; HD High Frame Rate (50/60/120p): 2.5" SSD, 2.5" HDD (7,200 rpm and up) for 1080p 50/60; HD (30p and less): 2.5" SSD, 2.5" HDD (5,400 rpm and up)
Compatible Media:
A storage medium that is compatible with your portable device, in a form that can easily be removed or accessed by a PC such as a type of memory card that is compatible with your camera.

View All Attribute Definitions
Physical Specifications
Dimensions: 8.4 x 5 x 1.8" (21.4 x 12.7 x 4.5 cm)
Dimensions:
The measurements of an object.

View All Attribute Definitions
Weight: Without Batteries & Media: 1.4 lb (0.65 kg); With Batteries & Media: 2.4 lb (1.09 kg)
Weight:
The physical weight of the item without packaging.

View All Attribute Definitions
Color: Black
Color:
The color of the item.

View All Attribute Definitions
Power System
Battery Type: 2 x Sony L-series
Battery Type:
The type of battery for a device. Some cameras use single use alkaline while others use rechargeable lithium batteries.

View All Attribute Definitions
Brand
Brand: Atomos
Detailed Specs
Dynamic Range: >90 dB
Camera Attributes
Aspect Ratio: Video- Native: 16:9
Hardware & Software Data
Interface & Connectivity: Inputs: 1 x HDMI (2.0), 4 x 3G-SDI Quad/Single 12G-SDI (BNC), 1 x Genlock / LTC (BNC), 1 x 2.5 mm LANC, 2 x XLR (included LEMO breakout cable required); Outputs: 1 x HDMI (2.0), 1 x 12G-SDI (BNC), 2 x XLR Out (included LEMO breakout cable required), 1 x 3.5 mm headphone jack
Interface & Connectivity:
The connectivity of an interface to a network.

View All Attribute Definitions
Image Display
Display Resolution: 1920 x 1200, 325 ppi
Display Resolution:
Usually measured in dots per inch or pixels per inch. Number of pixels displayed per inch.

View All Attribute Definitions

In The Box

  • Atomos Shogun Inferno 7" 4K HDMI/Quad 3G-SDI/12G-SDI Recording Monitor
  • XLR Breakout Cable
  • Master Caddy II
  • 2 x AC Power Adapter
