- 3 x SD Video HDMI / 4 x Composite Inputs
- 1 x 1080p HDMI Input with Scaler
- NTSC/PAL Internal Progressive Processing
- 4 x Built-in Frame Synchronizers
- Keyer, 259 Transitions, 148 Effects
- Audio Mixer & up to 4 Frame delay
- Analog T-Bar Transition Control
- Built-in Multiviewer with Touch Control
- USB Streaming for Webcasting
- Built-in Output Scaler
Overview
Accessible and quality video performance and web streaming - The V-4EX - advancing the legendary V-4 and V-8 family to now include HDMI in/out, progressive internal processing, audio embedding, USB streaming and built-in touch monitor.
Features

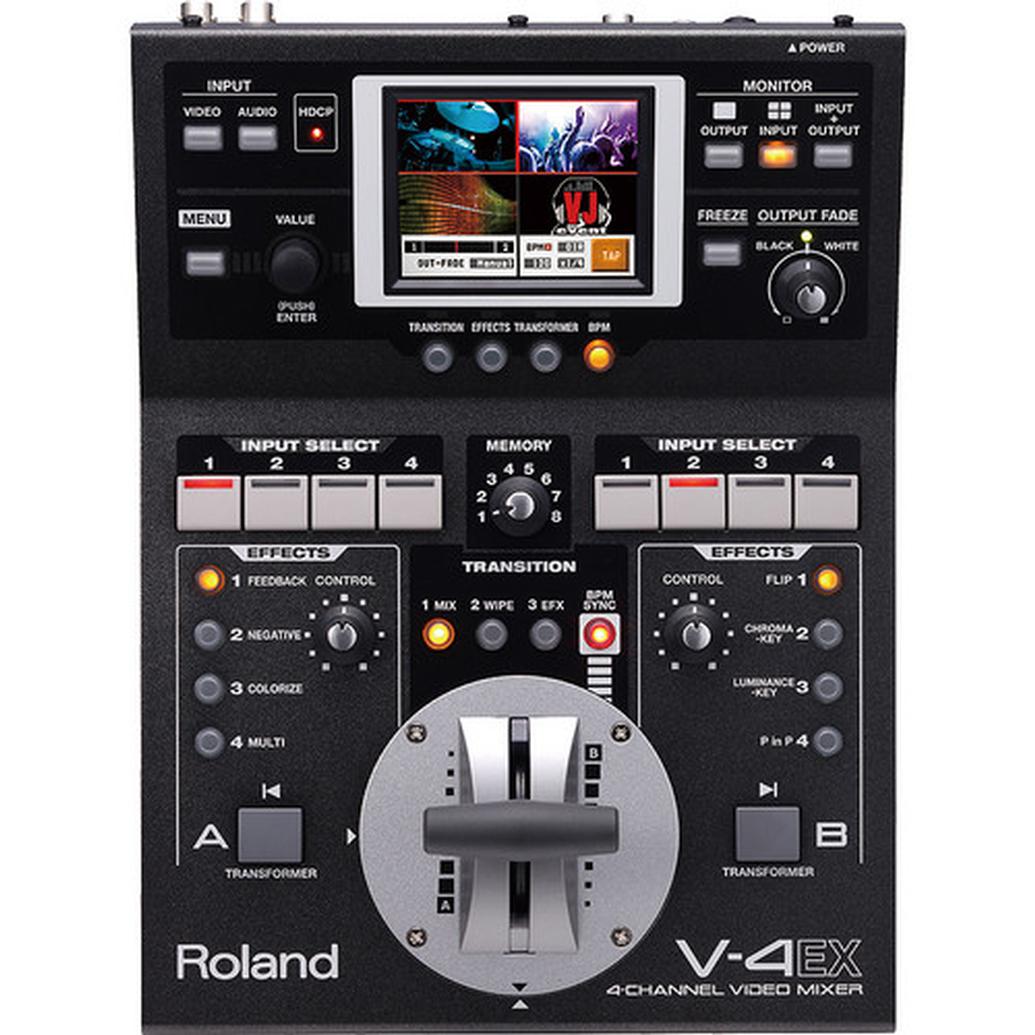

Edirol / Roland V-4EX Four Channel Digital Video Mixer with Effects
AC Adapter
Power Cord
2 x RCA to BNC Conversion Plug
HDMI Terminal | 2 Channel, linear PCM 24-bits/48 KHz |
Impedance | RGB/Component Signal Level: Luminance: 1.0 Vp-p, Chroma: 0.7 Vp-p 75? Composite Signal Level: 1.0 Vp-p Impedance: 75? S-Video Signal Level: 1.0 Vp-p Impedance: 75? analog Audio Nominal Input Level: -10 dBu Maximum Input Level: +8 dBu Impedance: 15 k? |
USB Port | USB Video Motion JPEG NTSC: 720 x 486 PAL: 720 x 576 USB Audio 2 Channel, linear PCM 24-bits/48 KHz |
Video Output Terminal | 8-bit progressive processing at: 480/59.94p when set to NTSC, and 576/50p when set to PAL. |
Audio Output | 24-bit at 48 KHz, 2 channel |
Weight | 5.7 lb (2.6 kg) |
Dimensions | 4.1 x 8.6 x 11.7" (105 x 225 x 296 mm) |
Color | Black |
Brand | Roland |
